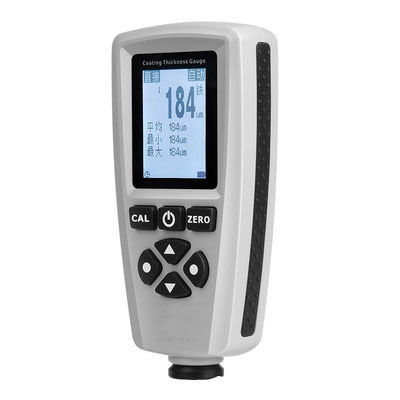

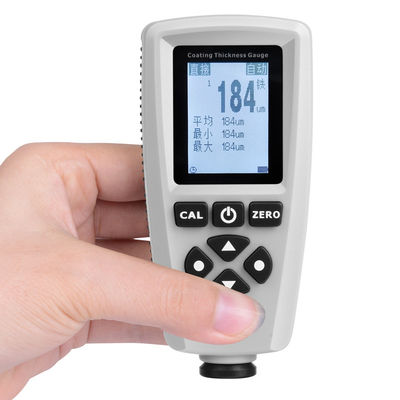

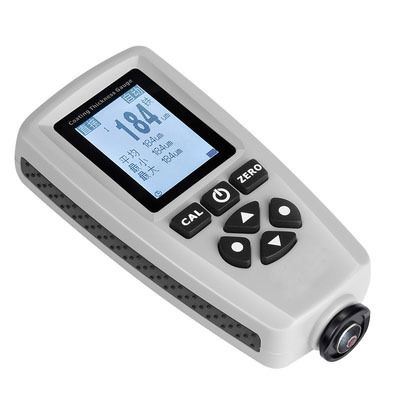

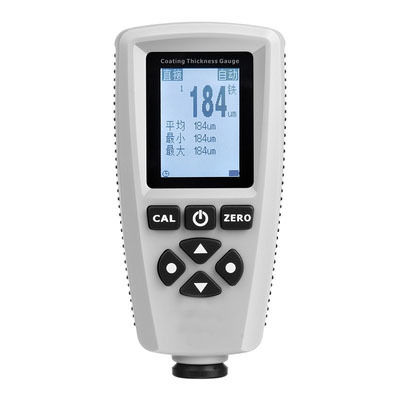

KMC 770 Digital Auto Car Paint Thickness Meter
Product Introduction
The KMC 770 is a high-precision coating thickness tester designed for non-destructive measurement of paint, galvanized layers, and plastic films on metal surfaces. It uses advanced technology to automatically identify ferromagnetic (iron, nickel, cobalt) and non-ferromagnetic (aluminum, copper) substrates, making it ideal for quality control in automotive, manufacturing, and chemical industries. With a measurement range of 0–2000μm and ±(2.5% + 1μm) accuracy, the device ensures reliable data for second-hand car inspections, material testing, and commodity inspection.
Product Features
Dual-Probe Technology:
Ruby-tipped probe automatically identifies iron/aluminum substrates for seamless switching between measurements.
Measures non-conductive coatings on metal and non-ferromagnetic coatings on ferromagnetic metals.
High Precision & Speed:
±(2.5% + 1μm) accuracy with a measurement speed of 2 times/second.
Suitable for thin films (e.g., car paint) and thick coatings (up to 2000μm).
Environment Resistance:
Operates reliably in -10°C–50°C, maintaining accuracy in extreme temperatures.
Red screen warning for out-of-range measurements.
User-Friendly Design:
Auto-shutoff for energy saving (no operation timeout).
Reversible screen for flexible measurement angles in tight spaces.
Compact size (114×53×25mm) and lightweight (80g) for portability.
Data Management:
Store and transfer measurement data to computers for analysis.
Ideal for batch testing and generating quality reports.
Technical Specs at a Glance
| Brand name |
KACISE |
| Model |
KMC-770 |
| Probe location: |
built-in |
| measuring range |
0~2000μm |
| Probe triggering force |
0.3~0.8N |
| Minimum measurement area |
Diameter 15 mm |
| boundary dimension |
114*53*25mm |
| Accuracy |
±(2.5%+1μm) |
| Weight |
80g |
| operating temperature |
-10~50℃ |
| product name |
Coating thickness gauge |
| Warranty |
1 year |
