Deltabar PMD55B - differential pressure transmitter

Deltabar PMD55B pressure transmitter,differential pressure sensor with warranty,precision pressure transmitter PMD55B

differential pressure sensor with warranty

precision pressure transmitter PMD55B

مكان المنشأ:

سويسرا

اسم العلامة التجارية:

Endress+Hauser

رقم الموديل:

دلتابار PMD55B

اتصل بنا

اطلب اقتباس

Deltabar PMD55B - differential pressure transmitter

تفاصيل المنتج

دقة:

دارد: ما يصل إلى 0.05%

البلاتينية::

يصل إلى 0.025%

نطاق قياس الضغط:

400 ملي بار...700 بار (1.5 رطل لكل بوصة مربعة...10500 رطل لكل بوصة مربعة)

الأجزاء المبللة الرئيسية:

316L، AlloyC، تنتال، مونيل، PTFE، ذهبي

غشاء عملية المواد:

316L، AlloyC، التانتال، المونيل، PTFE، الذهب

خلية القياس:

400 ملي بار...700 بار (6 رطل لكل بوصة مربعة...10500 رطل لكل بوصة مربعة)

إبراز:

Deltabar PMD55B pressure transmitter,differential pressure sensor with warranty,precision pressure transmitter PMD55B

differential pressure sensor with warranty

precision pressure transmitter PMD55B

شروط الدفع والشحن

الحد الأدنى لكمية

1 قطعة

تفاصيل التغليف

تحتوي كل وحدة على مربع فردي ويتم تعبئة جميع الصناديق في حزم قياسية أو طلبات العملاء متوفرة

وقت التسليم

5-8 أيام عمل

شروط الدفع

خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون، موني جرام

القدرة على العرض

1000 قطعة/قطعة في الأسبوع القابلة للتفاوض

منتجات ذات صلة

Deltabar PMD55B - differential pressure transmitter

احصل على أفضل سعر

Honeywell 24CE Series Miniature housing IEC945-5-1, EN60947-5-1. Metal housing. lP66. CE. Silver contacts

احصل على أفضل سعر

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

احصل على أفضل سعر

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

احصل على أفضل سعر

اتصل بنا

اتصل الآن

وصف المنتج

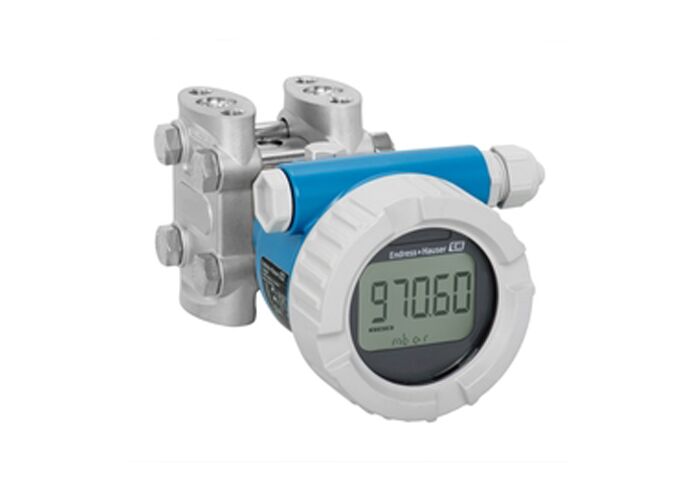

Deltabar PMD55B Differential Pressure Transmitter

The Deltabar PMD55B differential pressure transmitter represents the latest generation of robust, easy-to-operate industrial measurement instruments designed for both local and remote operation.

Key Specifications

Accuracy:
Standard: up to 0.075%
Platinum: up to 0.055%

Measuring Range:
10 mbar...40 bar (0.15 psi...600 psi)

Process Temperature:
-40°C...110°C (-40°F...230°F)

Pressure Range:
10 mbar...40 bar (0.15 psi...600 psi)

Main Wetted Parts:
316L, AlloyC

Static Pressure:
Up to 250 bar (3750 psi)

Field Application

This advanced transmitter enables wireless control via the SmartBlue app on mobile devices using secure Bluetooth connectivity. The PMD55B supports condition-based maintenance, significantly enhancing technical service efficiency through intuitive software wizards that guide users through setup and proof testing procedures.

Key Benefits

Wireless device control in process areas without interrupting operations
Enhanced safety by reducing on-site accidents in difficult-to-access areas
Reduced systematic failures with error-free SIL commissioning and guided proof testing

Technical Details

Measuring Principle:
Differential Pressure

Long Term Stability:
0.05% of URL/year
0.13% of URL/5 years
0.23% of URL/10 years

Ambient Temperature:
-40°C...85°C (-40°F...185°F)

Process Connection:
NPT 1/4-18, RC1/4"

Communication:
4...20 mA HART
PROFINET with Ethernet-APL
Bluetooth® wireless technology (optional)

Special Features

Bluetooth® operation and maintenance with SmartBlue App, RFID TAG for easy identification, and plug-and-play functionalities for simplified integration.

Certifications & Approvals

ATEX

CSA

IECEx

JPN Ex

INMETRO

NEPSI

UK Ex

SIL

EN 10204-3.1

NACE MR0175

NACE MR0103

AD2000

NSF

KTW

Application Limits

None - suitable for diverse industrial applications
