Name: KQS-PWS High-Temperature Resistant Corrosion-Resistant Duct Wind Speed Sensor with Low Starting Wind Speed ≤ 0.1 m/s
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KQS-PWS
Price: 5,000.00 USD
Availability: InStock

المنزل > المنتجات > Environmental Monitoring >

KQS-PWS High-Temperature Resistant Corrosion-Resistant Duct Wind Speed Sensor with Low Starting Wind Speed ≤ 0.1 m/s

مكان المنشأ:

الصين

اسم العلامة التجارية:

KACISE

إصدار الشهادات:

رقم الموديل:

KQS-PWS

اتصل بنا

اطلب اقتباس

KQS-PWS High-Temperature Resistant Corrosion-Resistant Duct Wind Speed Sensor with Low Starting Wind Speed ≤ 0.1 m/s

تفاصيل المنتج

نطاق القياس:

0-1 / 0-3 / 0-5 / 0-10 / 0-15 / 0-20 / 0-30 م / ث (اختياري)

نطاق حجم الهواء:

0-9,999,999 متر مكعب/ساعة

دقة:

±(0.2 + 2%FS) م/ث

دقة:

0.01 م/ث

بدء سرعة الرياح:

≥ 0.1 م/ث

إخراج الإشارة:

RS485 (Modbus/ASCII/SERVER) / 0-5 فولت / 4-20 مللي أمبير

شروط الدفع والشحن

الحد الأدنى لكمية

1 قطعة

تفاصيل التغليف

تحتوي كل وحدة على صندوق فردي، وجميع الصناديق معبأة في عبوات قياسية أو حسب طلب العميل

وقت التسليم

5-8 أيام عمل

شروط الدفع

خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون، موني جرام

القدرة على العرض

1000 قطعة / قطع أسبوع قابل للتفاوض

منتجات ذات صلة

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

احصل على أفضل سعر

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

احصل على أفضل سعر

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

احصل على أفضل سعر

KQS-GTM Tubular Multi-layer Soil Moisture Monitoring Instrument with FDR Technology for Multi-layer Monitoring (10/20/30/40 cm) and Solar Power

احصل على أفضل سعر

اتصل بنا

اتصل الآن

وصف المنتج

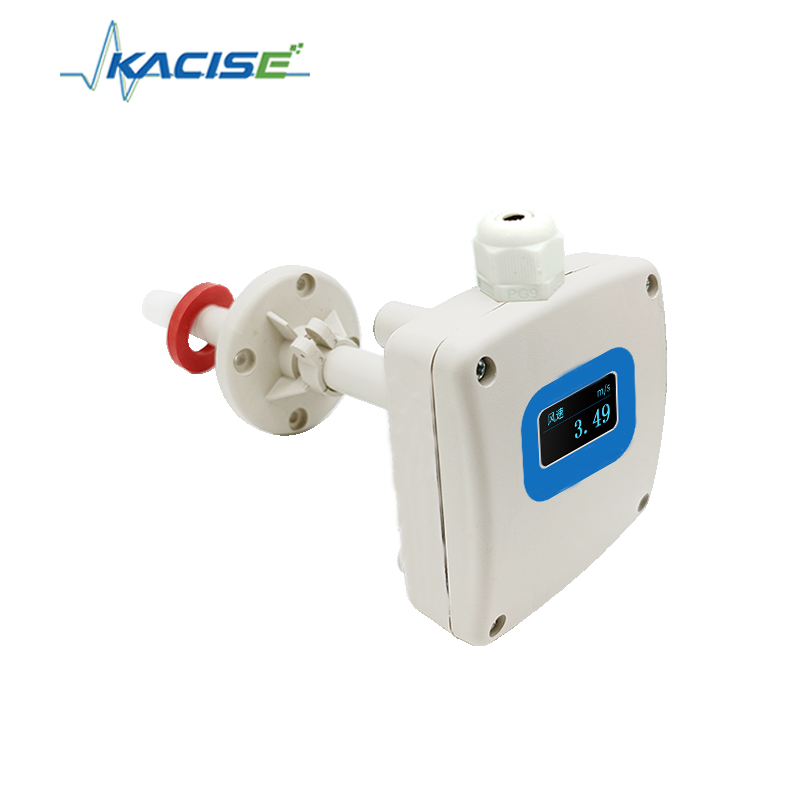

KQS-PWS Duct Wind Speed Sensor

The KQS-PWS duct-type wind speed sensor features a housing made of high-temperature and corrosion-resistant materials. Based on the thermal dissipation principle, it is capable of detecting even very low wind speeds while maintaining stable and reliable performance in harsh environments.

Compared with traditional wind speed sensors, it provides better stability and enables faster, more accurate measurement of micro airflows. Linear compensation and temperature compensation are automatically implemented, ensuring high accuracy and resolution. The sensor has no zero drift and excellent long-term stability, offering a high cost-performance ratio. Additionally, this series can withstand instantaneous high wind speeds and high wind pressure.

Product Features

Well-designed, compact and aesthetically pleasing structure, small in size, easy to carry, and simple to install
High measurement accuracy, wide measurement range, and strong stability
Strong corrosion resistance and weather resistance
Excellent dynamic response and strong anti-interference capability, ensuring accurate measurements
Low power consumption and long circuit lifespan, enabling long-term stable operation
Wide power supply range, with good signal linearity and long transmission distance

Technical Parameters

Item	Specification
Measurement range	□ 0-1 m/s □ 0-3 m/s □ 0-5 m/s □ 0-10 m/s □ 0-15 m/s □ 0-20 m/s □ 0-30 m/s
Air volume range	0-9,999,999 m³/h
Accuracy	±(0.2 + 2%FS) m/s
Resolution	0.01 m/s
Cross-sectional area range	0.01 - 100 m²
Starting wind speed	≤ 0.1 m/s
Sampling frequency	5 Hz
Power supply	DC 5-30 V (when powered at 5 V, cable must be 2×0.5 mm², length ≤ 5 m)
Signal output	RS485 (default Modbus/ASCII/SERVER)/0-5 V /4-20 mA
