مكان المنشأ:
الصين
اسم العلامة التجارية:
KACISE
إصدار الشهادات:
CE
رقم الموديل:
KSLV652
فيديو
فيديو
فيديو
فيديو

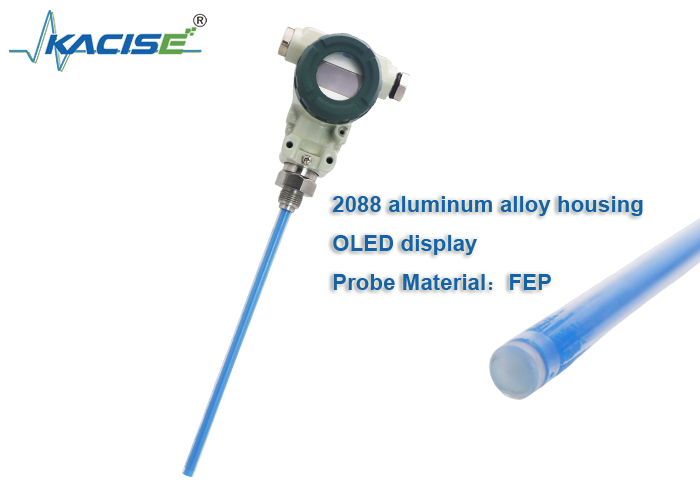

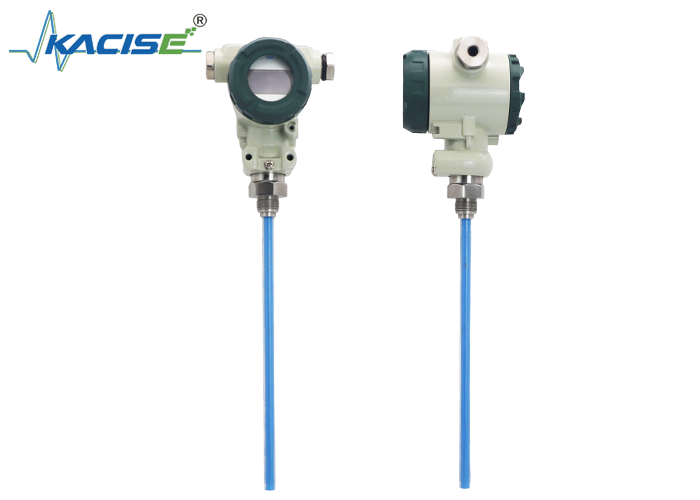

The KSLV652 is a high-precision capacitive level sensor specifically designed for industrial level measurement. It features a 2088 aluminum alloy housing, providing a robust and durable structure, and is equipped with an OLED display for real-time level data visualization, making on-site observation and commissioning more convenient.
The sensor adopts a high-performance FEP probe material, offering excellent corrosion resistance and high-temperature tolerance. It is suitable for various demanding industrial environments, including chemical processing, water treatment, oil storage tanks, food processing, and industrial automation applications.
The KSLV652 offers high measurement accuracy, strong stability, and easy installation. It supports standard 4–20 mA industrial signal output, allowing seamless integration with PLC, DCS, or other automation control systems, enabling continuous and reliable level monitoring.
| Parameter | Specification |
|---|---|
| Order Length L | 50–2000 mm (with protective tube, max 6000 mm) |
| Accuracy |
Absolute error ±3 mm (L ≤ 300 mm), Accuracy Class 1.0 (300 < L ≤ 700 mm), Accuracy Class 0.5 (700 < L ≤ 2000 mm) |
| Medium Temperature | -40 – 120 ℃ |
| Probe Temperature Resistance | -60 – 150 ℃ |
| Signal Type | 2-wire / 3-wire 4–20 mA |
| Supply Voltage | 18–36 Vdc, typically 24 Vdc |
| Pressure Range | -0.1 – 2.5 MPa |
| Long-term Stability | ≤0.1% FS/year |
| Temperature Drift | ≤0.02% FS/℃ (within -40 – 80 ℃) |
| Protection Level | IP65 |
| Probe Material | FEP |
| Probe Diameter | ∅10 mm |
| Fixing Screw Material | SUS 304 |
| Mounting Method | Threaded installation M20*1.5 (with protective tube M27*2) |
| Dimensional Tolerance | ±3 mm |
Coding Format: KSLV652-①-②-③-④
| Code① | Installation Method | ||
|---|---|---|---|
| 1 | External Thread M20*1.5 | ||
| 2 | External Thread M27*2 | ||
| F | Flange Connection, flange code e.g., DN25 → F25, generally according to HG/T 20592-2009 standard, material same as connector | ||
| Code② | Protective Tube | ||
| 0 | Without Protective Tube (default) | ||
| 1 | With Φ16 Stainless Steel Protective Tube | ||
| 2 | With Φ22 Stainless Steel Protective Tube | ||
| Code③ | Output Signal Type | Power Voltage Range | Recommended Power Voltage |
| 1 | 4–20 mA 2-wire | DC18–36V | DC24V |
| 2 | 4–20 mA 3-wire | DC12–28V | DC24V |
| Code④ | Order Length (mm) | Notes | |
| □/□/□ | Sensor Total Length / Upper Blind Zone / Lower Blind Zone | Total length is required; upper/lower blind zones filled according to order requirements. Mandatory for special orders; optional for standard products. | |
| Note: For this series, the maximum length without a protective tube is 2000 mm; with a Φ16 mm protective tube, the maximum length is 1000 mm; with a Φ22 mm protective tube, the maximum length is 6000 mm. | |||
Selection Example: KSLV652-F25-2-1-1500/300/30
Description:
Industrial standard universal level sensor, DN25 flange installation, with Φ22 stainless steel protective tube, 4–20 mA 2-wire signal output. Sensor total length: 1500 mm, upper blind zone: 300 mm, lower blind zone: 30 mm.
