اسم العلامة التجارية:
SICK
رقم الموديل:

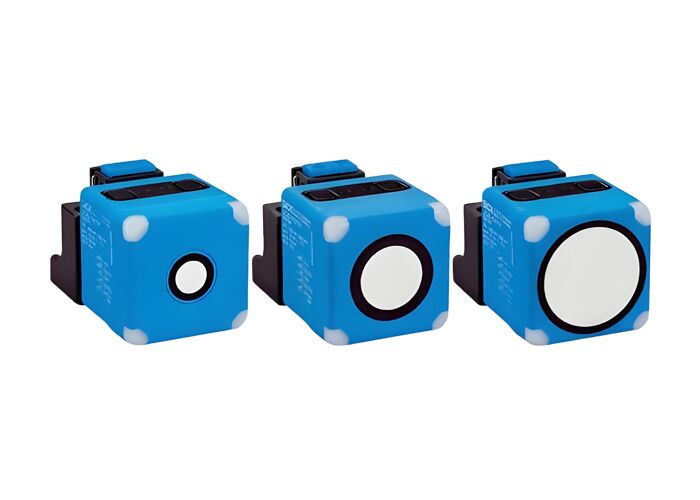

UC40
| Category | Details |
|---|---|
| Measuring range | Operating range: 65 mm ... 3,400 mm (depending on type) Limiting range: 600 mm ... 5,000 mm (depending on type) |
| Resolution | 0.1 mm / 1 mm (depending on type) |
| Repeatability | ± 0.15 % |
| Response time | 64 ms ... 160 ms ¹ (depending on type) |
| Output time | 16 ms ... 41.6 ms (depending on type) |
| Switching frequency | 10 Hz / 7 Hz / 4 Hz |
| Analog output | 4 mA ... 20 mA, ≤ 500 Ω ² / 0 V ... 10 V, ≥ 100,000 Ω |
| Digital output | Type: Push-pull: PNP/NPN |
| IO-Link | ✓, IO-Link V1.1 |
| Enclosure rating | IP65 / IP67 |
| Sending axis | Straight |
| Ambient temperature, operation | -25 °C ... +70 °C |
| Product Variant | Part No. | Min. Measuring Range | Max. Measuring Range | Type of Analog Output | Measuring Frequency | Switching Frequency | Response Time |
|---|---|---|---|---|---|---|---|
| UC40-11311H | 6081949 | 200 mm | 1300 mm | Current output, voltage output | 200 kHz | 7 Hz | 96 ms |
| UC40-11211B | 6081945 | 65 mm | 350 mm | - | 400 kHz | 10 Hz | 64 ms |
| UC40-11311B | 6081946 | 200 mm | 1300 mm | - | 200 kHz | 7 Hz | 96 ms |
| UC40-11411H | 6081950 | 350 mm | 3400 mm | Current output, voltage output | 120 kHz | 4 Hz | 160 ms |
| UC40-11411B | 6081947 | 350 mm | 3400 mm | - | 120 kHz | 4 Hz | 160 ms |
| UC40-11211H | 6081948 | 65 mm | 350 mm | Current output, voltage output | 400 kHz | 10 Hz | 64 ms |
