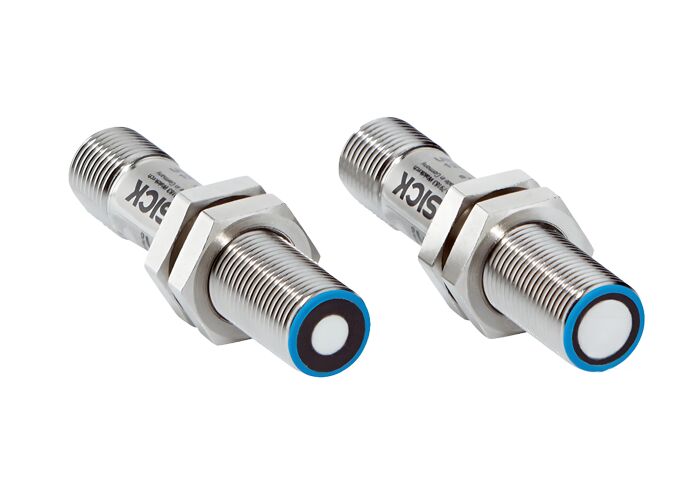

اسم العلامة التجارية:
SICK
رقم الموديل:
UM12
| Parameter | Details |
|---|---|
| Measuring Range | Operating range: 20 mm ... 240 mm (depending on type) Limiting range: 250 mm / 350 mm (depending on type) |
| Resolution | ≥ 0.069 mm |
| Repeatability | ± 0.15 % |
| Response Time | 24 ms ... 30 ms |
| Output Time | 8 ms ... 10 ms (depending on type) |
| Switching Frequency | 30 Hz / 25 Hz (depending on type) |
| Analog Output | 4 mA ... 20 mA, ≤ 500 Ω / 0 V ... 10 V, ≥ 100,000 Ω |
| Digital Output | Type: PNP / NPN / push-pull:PNP/NPN (depending on type) |
| IO-Link | ✓, IO-Link V1.1 |
| Enclosure Rating | IP65 / IP67 |
| Sending Axis | Straight |
| Ambient Temperature | -25 °C ... +70 °C |
| Product Variant | Part No. | Min. Range | Max. Range | Interface | Digital Output | Analog Output | Measuring Frequency | Switching Frequency | Response Time |
|---|---|---|---|---|---|---|---|---|---|
| UM12-11722B1 | 6077704 | 20 mm | 150 mm | IO-Link | push-pull: PNP/NPN | - | 380 kHz | 30 Hz | 24 ms |
| UM12-1172211 | 6053542 | 20 mm | 150 mm | - | PNP | - | 380 kHz | 30 Hz | 24 ms |
| UM12-1172271 | 6053545 | 20 mm | 150 mm | - | - | voltage output | 380 kHz | - | 24 ms |
| UM12-11922B1 | 6077705 | 40 mm | 240 mm | IO-Link | push-pull: PNP/NPN | - | 500 kHz | 25 Hz | 30 ms |
| UM12-1192261 | 6053548 | 40 mm | 240 mm | - | - | Current output | 500 kHz | - | 30 ms |
| UM12-1192271 | 6053549 | 40 mm | 240 mm | - | - | voltage output | 500 kHz | - | 30 ms |
| UM12-1172251 | 6053543 | 20 mm | 150 mm | - | NPN | - | 380 kHz | 30 Hz | 24 ms |
| UM12-1192251 | 6053547 | 40 mm | 240 mm | - | NPN | - | 500 kHz | 25 Hz | 30 ms |
| UM12-1192211 | 6053546 | 40 mm | 240 mm | - | PNP | - | 500 kHz | 25 Hz | 30 ms |
| UM12-1172261 | 6053544 | 20 mm | 150 mm | - | - | Current output | 380 kHz | - | 24 ms |
