مكان المنشأ:
سويسرا
اسم العلامة التجارية:
Endress+Hauser
إصدار الشهادات:
CE

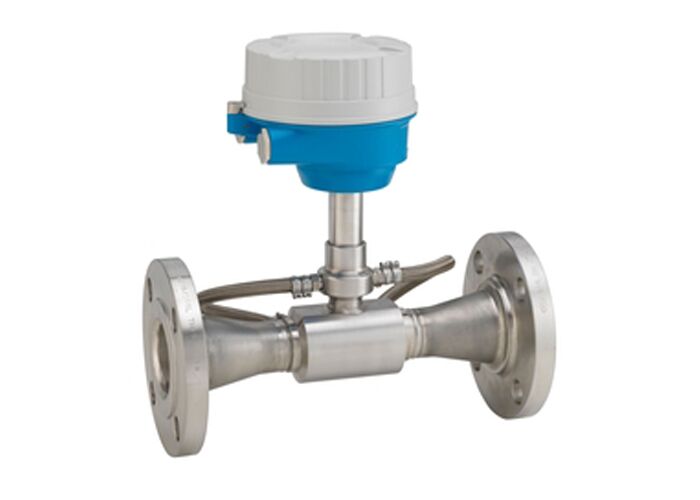

| Measuring Principle | Ultrasonic flow |
| Nominal Diameter Range | DN 50 to 150 (2" to 6") |
| Measured Variables | Flow velocity, sound velocity |
| Max. Measurement Error | MID 004 accuracy class II (2%) |
| Measuring Range | 0.025 to 5 m/s (0.02 to 16.4 ft/s) 0 to 6360 dm³/min (0 to 1680 gal/min) |
| Max. Process Pressure | PN 25/ ASME Cl. 150 |
| Medium Temperature Range | 0 to 150°C (32 to 302°F) |
| Ambient Temperature Range | -20 to 60°C (-4 to 140°F) |
| Wetted Materials | Measuring tube: 1.4301 (F304) Process Connection: 1.4571; 1.4404 (F316L); 1.0038 (S235JR); 1.4306 (F304L); 1.4307 (F304L); A105 |
| Sensor Housing Material | Stainless steel |
| Transmitter Housing Material | Compact: AlSi10Mg, coated |
| Degree of Protection | Standard: IP66/67, Type 4X enclosure With opened housing: IP20, Type 1 enclosure |
| Display/Operation | Direct reading of status information via color LEDs |
| Outputs | Pulse/Frequency |
| Inputs | None |
| Digital Communication | None |
| Power Supply | DC 19.2 to 28.8 V |
