Name: Proline Promass Q 500 Coriolis flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: برولاين بروماس كيو 500
Price: 2,540.00 USD
Availability: InStock

المنزل > المنتجات > مقياس الجريان الكهرومغناطيسي >

Proline Promass Q 500 Coriolis flowmeter

Proline Promass Q 500 flowmeter,Coriolis flowmeter with warranty,Electromagnetic flow meter for liquids

Coriolis flowmeter with warranty

Electromagnetic flow meter for liquids

مكان المنشأ:

سويسرا

اسم العلامة التجارية:

Endress+Hauser

إصدار الشهادات:

رقم الموديل:

برولاين بروماس كيو 500

اتصل بنا

اطلب اقتباس

Proline Promass Q 500 Coriolis flowmeter

تفاصيل المنتج

نطاق القياس:

0 إلى 2400000 كجم/ساعة (0 إلى 88183 رطل/دقيقة)

موافقات المنطقة الخطرة:

atex ، IECEX ، CCSAUS ، NEPSI ، Inmetro ، EAC ، KC

سلامة المنتج:

CE ، C-Tick ، وضع علامة EAC

الموافقات والشهادات البحرية:

موافقة LR، موافقة DNV، موافقة ABS، موافقة BV، موافقة CCS

موافقات وشهادات الضغط:

PED، CRN، م 2000

إبراز:

Proline Promass Q 500 flowmeter,Coriolis flowmeter with warranty,Electromagnetic flow meter for liquids

Coriolis flowmeter with warranty

Electromagnetic flow meter for liquids

شروط الدفع والشحن

الحد الأدنى لكمية

1 قطعة

تفاصيل التغليف

تحتوي كل وحدة على مربع فردي ويتم تعبئة جميع الصناديق في حزم قياسية أو طلبات العملاء متوفرة

وقت التسليم

5-8 أيام عمل

شروط الدفع

خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون، موني جرام

القدرة على العرض

1000 قطعة/قطعة في الأسبوع القابلة للتفاوض

منتجات ذات صلة

Proline Promass S 300 Coriolis flowmeter

احصل على أفضل سعر

Proline Promass P 500 Coriolis flowmeter

احصل على أفضل سعر

Proline Promass Q 300 Coriolis flowmeter

احصل على أفضل سعر

Proline t-mass F 500 thermal mass flowmeter

احصل على أفضل سعر

اتصل بنا

اتصل الآن

وصف المنتج

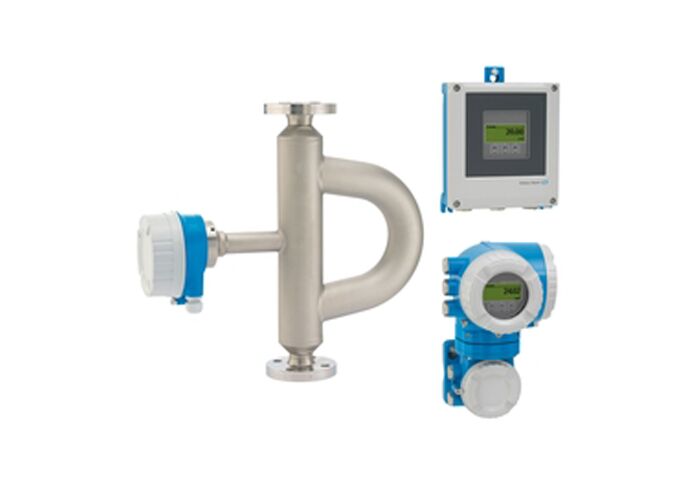

Proline Promass Q 500 Coriolis Flowmeter

The Proline Promass Q 500 provides the highest measurement accuracy for mass flow, volume flow, and density. As the preferred choice for custody transfer applications, it has been optimized for liquid applications where entrained gas may be present. With its innovative remote transmitter, the Promass Q 500 maximizes installation flexibility and operational safety in demanding environments.

Key Specifications

Maximum Measurement Error	Mass flow (liquid): ±0.10% (standard), 0.05% (option) Volume flow (liquid): ±0.10% Mass flow (gas): ±0.25% Density (liquid): ±0.2 kg/m³ (standard), ±0.1 kg/m³ (option)
Measuring Range	0 to 2,400,000 kg/h (0 to 88,183 lb/min)
Medium Temperature Range	Standard: -50 to +205°C (-58 to +401°F) Option: -196 to +150°C (-321 to +302°F)
Maximum Process Pressure	PN 100, Class 600, 63K
Nominal Diameter Range	DN 25 to 250 (1" to 10")

Field of Application

Promass Q 500 delivers highest measurement performance for custody transfer, density measurement, and operation under tough process conditions. Heartbeat Technology enables safe processes while operating independently of physical fluid properties such as viscosity or density.

Key Benefits

Unmatched accuracy of mass flow, volume flow, and density measurement
Optimized performance for liquids with entrained gas using Multi-Frequency Technology
Multivariable measurement (flow, density, temperature) reduces process measuring points
Space-saving installation with no inlet/outlet run requirements
Full access to process and diagnostic information through numerous I/Os and Ethernet
Freely configurable I/O functionality reduces complexity
Integrated verification via Heartbeat Technology

Technical Features

Sensor Features: Mass flow measurement error ±0.05% (PremiumCal), density measurement error ±0.2 kg/m³, high turndown due to low pressure loss/zero point

Transmitter Features: Remote version with up to 4 I/Os, backlit display with touch control and WLAN access, standard cable between sensor and transmitter

Construction Materials

Wetted Materials	Measuring tube: 1.4404 (316/316L); stainless steel for cryogenic applications Connection: 1.4404 (316/316L)
Sensor Housing Material	1.4404 (316L), highest corrosion resistance
Transmitter Housing Material	AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; Polycarbonate

Certifications & Approvals

ATEX IECEx cCSAus NEPSI INMETRO EAC KC CE C-tick 3-A EHEDG cGMP PED CRN AD 2000 NACE
