اسم العلامة التجارية:
Endress+Hauser
إصدار الشهادات:
CE
رقم الموديل:

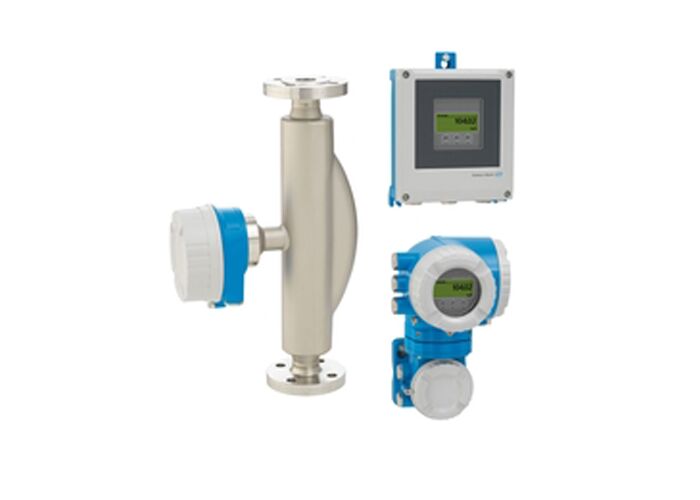

برولين بروماس F 500
| Measuring Principle | Coriolis |
| Nominal Diameter Range | DN 8 to 250 (³⁄₈ to 10") |
| Measured Variables | Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration |
| Measuring Range | 0 to 2,200,000 kg/h (0 to 80,840 lb/min) |
| Max. Process Pressure | PN 100, Class 600, 63K |
| Mass Flow (Liquid) | ±0.10% (standard), ±0.05% (option) |
| Volume Flow (Liquid) | ±0.10% |
| Mass Flow (Gas) | ±0.25% |
| Density (Liquid) | ±0.0005 g/cm³ |
| Medium Temperature |
Standard: -50 to +150 °C (-58…+302 °F) Option: -50 to +240 °C (-58…+464 °F) High Temperature Option: -50 to +350 °C (-58…+662 °F) Option: -196 to +150 °C (-320 to +302 °F) |
| Ambient Temperature |
Standard: -40 to +60 °C (-40 to +140 °F) Option: -60 to +60 °C (-76 to +140 °F) |
| Wetted Materials |
Measuring Tube: 1.4539 (904L); 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022) Connection: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022); 1.4301 (F304) |
| Housing Materials |
Sensor: Standard 1.4301 (304), corrosion resistant Transmitter: AlSi10Mg, coated; 1.4409 (CF3M); Polycarbonate |
