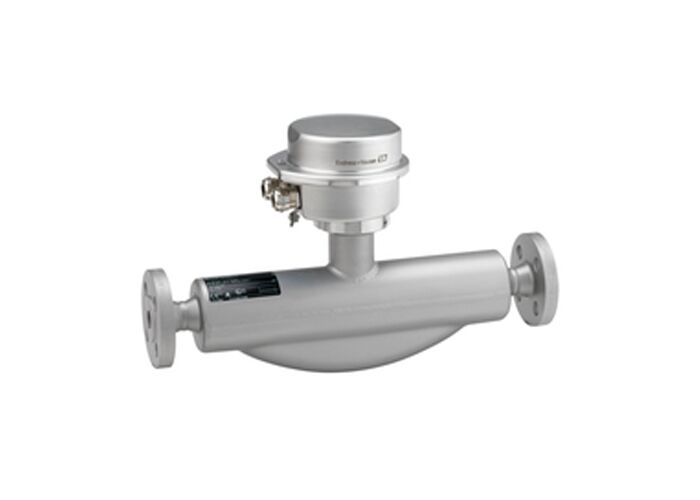

Proline Promass F 100 Coriolis Flowmeter
The Promass F 100 Coriolis flowmeter delivers premium accuracy and robust performance in an ultra-compact transmitter design. Engineered for the highest measurement performance across liquids and gases under demanding process conditions.
Key Specifications
Max. Measurement Error (Liquid Mass Flow):
±0.1% (standard), 0.05% (option)
Max. Measurement Error (Volume Flow):
±0.1%
Max. Measurement Error (Gas Mass Flow):
±0.25%
Density Measurement Error:
±0.0005 g/cm³
Measuring Range:
0 to 2,200,000 kg/h (0 to 80,840 lb/min)
Medium Temperature Range:
-50 to +150°C standard (-58 to +302°F)
Option: -50 to +240°C (-58 to +464°F)
Max. Process Pressure:
PN 100, Class 600, 63K
Nominal Diameter Range:
DN 8 to 250 (3/8 to 10")
Field of Application
The Promass F series has a long-standing reputation for high accuracy under varying process conditions. Ideal for system integrators, skid builders, and equipment manufacturers, this flowmeter operates independently of fluid properties like viscosity or density.
Key Benefits
- Highest process safety - immune to fluctuating and harsh environments
- Fewer process measuring points - multivariable measurement (flow, density, temperature)
- Space-saving installation - no inlet/outlet run requirements
- Ultra-compact transmitter with full functionality
- Time-saving local operation via integrated web server
- Integrated verification with Heartbeat Technology
Technical Features
Sensor Features:
- Mass flow measurement error ±0.05% (PremiumCal)
- Medium temperature up to +240°C (+464°F)
- Rated secondary containment up to 40 bar (580 psi)
- Highest degree of protection: IP69K
Transmitter Features:
- Robust, ultra-compact transmitter housing
- Configuration via web browser and operating tools
- 4-line backlit display available
Materials & Construction
Wetted Materials:
Measuring tube: 1.4539 (904L); 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)
Connection: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)
Housing Materials:
Sensor: 1.4301/1.4307 (304L), corrosion resistant
Transmitter: Compact: AlSi10Mg, coated; Compact/ultra-compact: 1.4301 (304), 1.4404 (316L)
Measured Variables
Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration
Communication & I/O
Outputs:
4-20 mA HART (active), Pulse/frequency/switch output (passive)
Inputs:
None
Digital Communication:
HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET
Power Supply:
DC 20 to 30 V
Approvals & Certifications
Hazardous Area:
ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC
Product Safety:
CE, C-Tick, EAC marking
Marine:
ABS, BV, LR, CCS
Pressure:
PED, CRN, AD 2000
Hygienic:
3-A, EHEDG, cGMP
Metrological:
ISO/IEC 17025, ISO 9001:2015 (TÜV SÜD)
Material:
3.1 material, NACE MR0175/MR0103, PMI, EN ISO, ASME, NORSOK
