مكان المنشأ:
سويسرا
اسم العلامة التجارية:
Endress+Hauser
إصدار الشهادات:
CE
رقم الموديل:

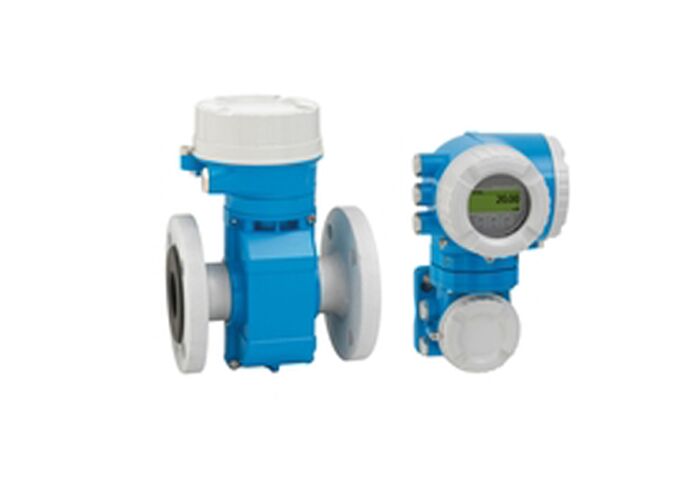

برولاين بروماج دبليو 500
| Measuring Principle | Electromagnetic |
| Nominal Diameter Range | DN 25 to 3000 (1" to 120") |
| Measuring Range | 0.5 m³/h to 263,000 m³/h (2.5 gal/min to 1,665 Mgal/d) |
| Max. Measurement Error |
Volume flow (standard): ±0.5% o.r. ± 1 mm/s (0.04 in/s) Volume flow (option): ±0.2% o.r. ± 2 mm/s (0.08 in/s), Flat Spec |
| Max. Process Pressure | PN 40, Class 300, 20K |
| Measured Variables | Volume flow, conductivity, mass flow |
| Medium Temperature |
Hard rubber liner: 0 to +80°C (+32 to +176°F) Polyurethane liner: -20 to +50°C (-4 to +122°F) PTFE liner: -20 to +90°C (-4 to +194°F) |
| Ambient Temperature |
Carbon steel flange: -10 to +60°C (+14 to +140°F) Stainless steel flange: -40 to +60°C (-40 to +140°F) |
