Name: Digital COD Sensor with 0-500mg/L and 0-1500mg/L Range ±5%FS Accuracy for Water Quality Monitoring
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: كي دبليو اس-190
Price: 5,000.00 USD
Availability: InStock

المنزل > المنتجات > جهاز استشعار جودة المياه >

Digital COD Sensor with 0-500mg/L and 0-1500mg/L Range ±5%FS Accuracy for Water Quality Monitoring

0-500mg/L Range COD Sensor,0-1500mg/L Range Water Quality Sensor,±5%FS Accuracy Digital COD Sensor

0-1500mg/L Range Water Quality Sensor

±5%FS Accuracy Digital COD Sensor

مكان المنشأ:

الصين

اسم العلامة التجارية:

kacise

إصدار الشهادات:

رقم الموديل:

كي دبليو اس-190

اتصل بنا

اطلب اقتباس

Digital COD Sensor with 0-500mg/L and 0-1500mg/L Range ±5%FS Accuracy for Water Quality Monitoring

تفاصيل المنتج

وزن:

1 كجم (بدون كابل)

نطاق القياس:

0-500 ملغم/لتر؛ 0-1500 ملجم/لتر

دقة:

±5%FS (0-500 ملجم/لتر)؛ ±10%FS (500-1500 ملجم/لتر)

دقة:

0.1 ملغم/لتر؛ 0.1NTU

مزود الطاقة:

12 ~ 24 فولت تيار مستمر

إبراز:

0-500mg/L Range COD Sensor,0-1500mg/L Range Water Quality Sensor,±5%FS Accuracy Digital COD Sensor

0-1500mg/L Range Water Quality Sensor

±5%FS Accuracy Digital COD Sensor

شروط الدفع والشحن

الحد الأدنى لكمية

1 قطعة

تفاصيل التغليف

تحتوي كل وحدة على مربع فردي ويتم تعبئة جميع الصناديق في حزم قياسية أو طلبات العملاء متوفرة

وقت التسليم

5-8 أيام عمل

شروط الدفع

Moneygram ، Western Union ، T/T ، D/P ، D/A ، L/C.

القدرة على العرض

1000 قطعة/قطعة في الأسبوع القابلة للتفاوض

منتجات ذات صلة

KWS-790 Digital pH Sensor with 0.00–14.00 pH Measuring Range ±0.02 pH Accuracy and 0–99.9 ℃ Temperature Compensation

احصل على أفضل سعر

KMPW520 Multi-Parameter Water Quality Analyzer with 7 Inch Touch Screen Display 6-Channel Relay Control and 2-Channel 4-20mA Output

احصل على أفضل سعر

TDLAS302 Laser Methane Sensor with 0.1 ppm Resolution and 0–1000 ppm Measurement Range for High Accuracy Gas Analysis

احصل على أفضل سعر

عداد DO البصري عبر الإنترنت مثبت على الحائط مع نطاق قياس 0.00-20.00mg/L ودقة ± 2%F.S. و0.01mg/L

احصل على أفضل سعر

اتصل بنا

86--17719566736

اتصل الآن

وصف المنتج

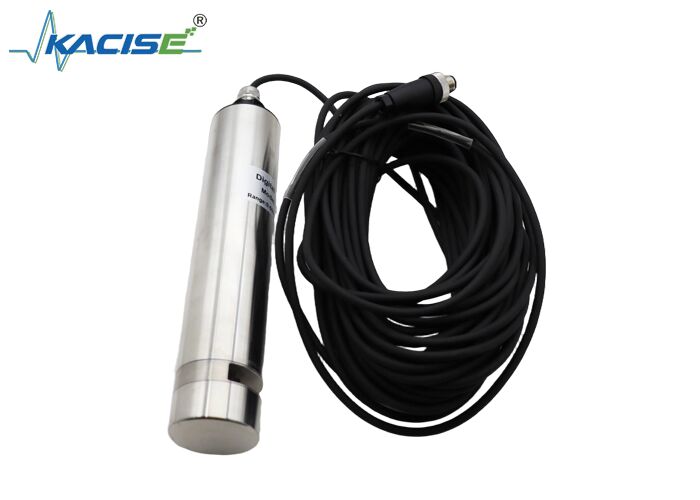

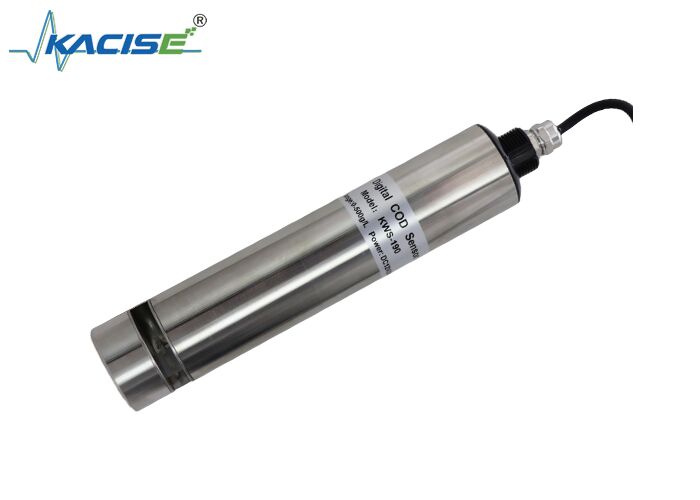

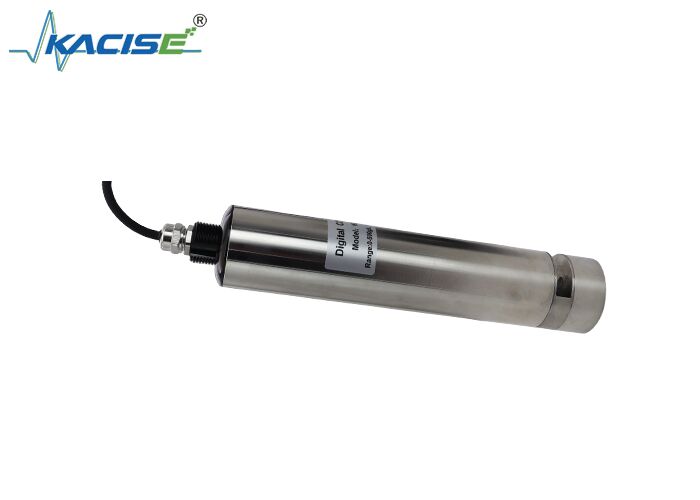

KWS-190 Water Digital COD Sensor

Product Introduction

The UV Method COD Digital Sensor is a digital sensor developed for real-time online monitoring of water COD (Chemical Oxygen Demand). It measures UV light absorption by organic matter in water to determine COD values, with automatic turbidity compensation to eliminate interference from suspended solids.

Main Features

Stainless steel housing with high strength and corrosion resistance
Reagent-free operation for eco-friendly, pollution-free monitoring
Automatic turbidity compensation function
Built-in automatic cleaning to reduce maintenance requirements
Long service life with low operational costs
Direct RS485 interface connectivity for integration with computers, PLCs, and IoT systems
Configurable settings via RS485: slave address, baud rate, calibration, and factory reset
Multi-point calibration support (up to 5 points)

Technical Specifications

Parameter	Specification
Measuring Range	0-500mg/L or 0-1500mg/L (customizable)
Customizable Ranges	COD (0-500mg/L): TOC 0-200mg/L; BOD 0-300mg/L COD (0-1500mg/L): TOC 0-600mg/L; BOD 0-900mg/L
Resolution	0.1mg/L; 0.1NTU
Accuracy	±5%FS (0-500mg/L); ±10%FS (500-1500mg/L)
Turbidity Compensation	0-1000NTU
Interface	RS485 with MODBUS protocol support
Operating Conditions	Ambient Temperature 0-60℃; Water Pressure < 0.1MPa
Power Supply	12-24VDC
Cable	5M standard (customizable length available)
Protection Rating	IP68
Weight	1kg (without cable)

All specifications are subject to change without notice. Contact us for custom configurations or additional technical details.
