اسم العلامة التجارية:

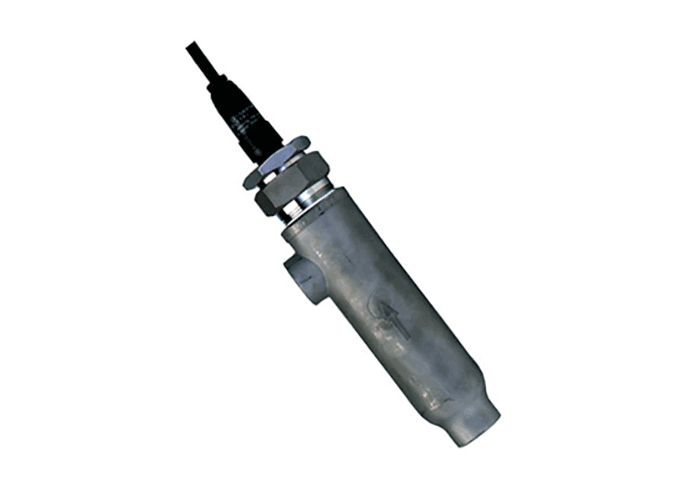

Yokogawa
رقم الموديل:
SC8SG
| Measurement Object | Conductivity of liquids or solutions |
|---|---|
| Measuring Principle | 2-electrode or 4-electrode system |
| Cell Constants |
0.01 cm⁻¹ or 10 cm⁻¹ (2-electrode system) 10 cm⁻¹ (4-electrode system) |
| Measuring Ranges |
0 - 0.5 μS/cm to 0 - 100 μS/cm (0.01 cm⁻¹ cell constant) 0 - 1 mS/cm to 0 - 1000 mS/cm (10 cm⁻¹ cell constant) |
| Temperature Range | 0 to 100°C (130°C max for 0.01 cm⁻¹ detectors, excluding polypropylene chambers) |
| Pressure | 1000 kPa max (500 kPa max for polypropylene chamber detectors) |
| Flow Rate | No specific limits, though <20 l/min recommended for flow-through detectors |
| Temperature Compensation | Pt1000 RTD (built into sensor) |
| Construction | Rainproof encapsulation (JIS C0920 compliant) |
| Weight |
|
| Process Connection | Screw-in or flow-through |
