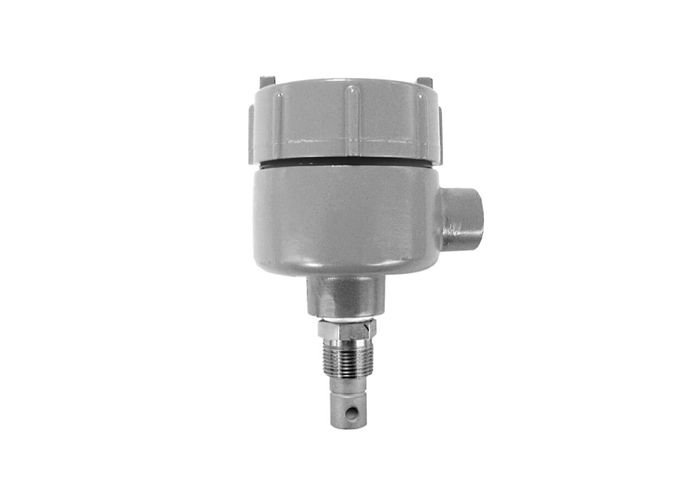

Name: High Pressure High Temperature Conductivity Sensor with 316 Stainless Steel 2-Electrode Design and Pt1000 Temperature Element
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: مستشعر SC42/SX42
Price: 5,000.00 USD
Availability: InStock

المنزل > المنتجات > جهاز استشعار جودة المياه >

High Pressure High Temperature Conductivity Sensor with 316 Stainless Steel 2-Electrode Design and Pt1000 Temperature Element

316 Stainless Steel Conductivity Sensor,2-Electrode Design Water Quality Sensor,Pt1000 Temperature Element Contacting Sensor

2-Electrode Design Water Quality Sensor

Pt1000 Temperature Element Contacting Sensor

اسم العلامة التجارية:

Yokogawa

رقم الموديل:

مستشعر SC42/SX42

اتصل بنا

اطلب اقتباس

High Pressure High Temperature Conductivity Sensor with 316 Stainless Steel 2-Electrode Design and Pt1000 Temperature Element

تفاصيل المنتج

ثوابت الخلايا:

0.1/سم 1.0/سم

عنصر درجة الحرارة:

Pt1000

مواد البناء:

316 الفولاذ المقاوم للصدأ

تصميم Sytle:

2-lectrode

إبراز:

316 Stainless Steel Conductivity Sensor,2-Electrode Design Water Quality Sensor,Pt1000 Temperature Element Contacting Sensor

2-Electrode Design Water Quality Sensor

Pt1000 Temperature Element Contacting Sensor

شروط الدفع والشحن

الحد الأدنى لكمية

1pcs

تفاصيل التغليف

تحتوي كل وحدة على مربع فردي ويتم تعبئة جميع الصناديق في حزم قياسية أو طلبات العملاء متوفرة

وقت التسليم

5-8 أيام العمل

شروط الدفع

Moneygram ، Western Union ، T/T ، D/P ، D/A ، L/C.

القدرة على العرض

1000 قطعة/قطعة في الأسبوع القابلة للتفاوض

منتجات ذات صلة

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

احصل على أفضل سعر

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

احصل على أفضل سعر

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

احصل على أفضل سعر

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

احصل على أفضل سعر

اتصل بنا

86--17719566736

اتصل الآن

وصف المنتج

High Pressure/High Temperature Conductivity Sensor SC42/SX42

High Pressure - High Temperature Contacting sensor primarily designed for Boiler Blowdown and Condensate Leak detection applications. These conductivity cells have extremely high temperature and pressure ratings: the threaded types can handle 16 bar at 200°C and the flanged types can handle 40 bar at 250°C.

Product Selection

Specification	SC42 Small Bore	SX42 Large Bore	SX42 Large Bore (Flanged)
Model Code	SC42 Small Bore	SX42 Large Bore	SX42 Large Bore
Cell Constants	0.1/cm; 1.0/cm	0.1/cm; 1.0/cm	0.1/cm; 1.0/cm
Ranges	0.4-2,000 µS/cm; 4.0-5,000 µ/cm	0.02-2,000 µS/cm; 0.2-20,000 µS/cm	0.02-2,000 µS/cm; 0.2-20,000 µS/cm
Temperature Element	Pt1000	Pt1000	Pt1000
Pressure Rating	7 bar/100 PSIG	16 bar/228 PSIG	40 bar/570 PSIG
Maximum Temperature	100°C/212°F	up to 200°C	up to 250°C
Installation Connections	3/4" NPT Fitting; 1", 1.5" or 2" Tri-Clamp	1" NPT	2" 600lb ANSI Flange
Integral Cable	NO	NO	NO
Materials Of Construction	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel
Design Style	2-Electrode	2-Electrode	2-Electrode

Key Features

Designed for high-pressure, high-temperature applications
Ideal for boiler blowdown and condensate leak detection
Available in small bore and large bore configurations
Multiple installation connection options
Constructed from durable 316 stainless steel
2-electrode design for reliable conductivity measurement
