Name: Yokogawa pH/ORP Sensor with SENCOM4.0 Support Pt1000 Temperature Compensation and pH 2 to 12 Range for Water Quality Monitoring
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: مستشعرات ph8efp ، ph8erp ، or8efg ، or8erg
Price: 5,000.00 USD
Availability: InStock

المنزل > المنتجات > جهاز استشعار جودة المياه >

Yokogawa pH/ORP Sensor with SENCOM4.0 Support Pt1000 Temperature Compensation and pH 2 to 12 Range for Water Quality Monitoring

SENCOM4.0 Support pH/ORP Sensor,Pt1000 Temperature Compensation Water Quality Sensor,pH 2 to 12 Range pH Detector

Pt1000 Temperature Compensation Water Quality Sensor

pH 2 to 12 Range pH Detector

اسم العلامة التجارية:

Yokogawa

رقم الموديل:

مستشعرات ph8efp ، ph8erp ، or8efg ، or8erg

اتصل بنا

اطلب اقتباس

Yokogawa pH/ORP Sensor with SENCOM4.0 Support Pt1000 Temperature Compensation and pH 2 to 12 Range for Water Quality Monitoring

تفاصيل المنتج

الكائن المقاس::

تركيز أيون الهيدروجين (PH) في محلول مائي

مبدأ القياس::

طريقة القطب الزجاجي

نطاق القياس::

الرقم الهيدروجيني 2 إلى 12

قياس درجة الحرارة:

-5 إلى 80 درجة مئوية

قياس الضغط:

الضغط الجوي إلى 50 كيلو باسكال

إبراز:

SENCOM4.0 Support pH/ORP Sensor,Pt1000 Temperature Compensation Water Quality Sensor,pH 2 to 12 Range pH Detector

Pt1000 Temperature Compensation Water Quality Sensor

pH 2 to 12 Range pH Detector

شروط الدفع والشحن

الحد الأدنى لكمية

1pcs

تفاصيل التغليف

تحتوي كل وحدة على مربع فردي ويتم تعبئة جميع الصناديق في حزم قياسية أو طلبات العملاء متوفرة

وقت التسليم

5-8 أيام العمل

شروط الدفع

L/C ، D/A ، D/P ، T/T ، Western Union ، Moneygram

القدرة على العرض

1000 قطعة/قطعة في الأسبوع القابلة للتفاوض

منتجات ذات صلة

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

احصل على أفضل سعر

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

احصل على أفضل سعر

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

احصل على أفضل سعر

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

احصل على أفضل سعر

اتصل بنا

86--17719566736

اتصل الآن

وصف المنتج

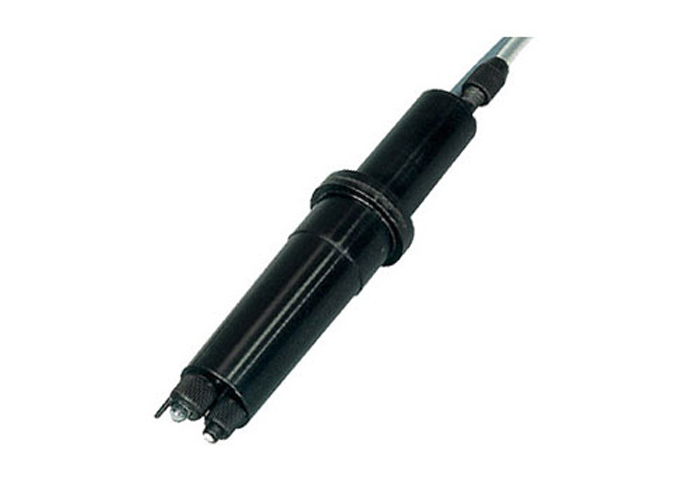

pH/ORP Sensors PH8EFP, PH8ERP, OR8EFG, OR8ERG

Yokogawa's pH and ORP analyzers deliver high reliability with advanced functions for diverse applications including water quality management in production processes, wastewater treatment plants, and general pH/ORP control systems. Our comprehensive product range, built on decades of experience, provides optimal solutions for specific application requirements.

The standard Ryton pH and ORP sensors (PH8EFP, PH8ERP, OR8EFG, OR8ERG) can be enhanced with specialty sensors for various applications. When paired with the SENCOM Smart Adapter SA11, these analog detectors become digital detectors with Variopin connector compatibility, offering flexible on-site deployment options.

Key Features

Durable construction: Ryton body offers corrosion and heat resistance comparable to Teflon
Universal compatibility: Single electrode type supports all applications, regardless of holder or cleaner usage
Simplified maintenance: Integrated-electrode design enables easy calibration and upkeep
Modular components: Glass electrode (pH), platinum/gold electrode (ORP), and junction can each be replaced individually
Digital upgrade: SENCOM Smart Adapter SA11 converts sensors to digital detectors with SENCOM4.0 support

Technical Specifications

1. pH Sensors

1-1. KCl Refillable Type Electrode PH8ERP

Parameter	Specification
Measured object	Hydrogen ion concentration (pH) in aqueous solution
Measurement principle	Glass electrode method
Measuring range	pH 2 to 12
Measuring temperature	-5 to 80℃
Measuring pressure	Atmospheric pressure to 50 kPa
Temperature compensation sensor	Pt1000
Weight	Approx. 0.4kg
Digital communication	SENCOM4.0 (with Variopin connector and SA11 adapter)

1-2. KCl Filling Type Electrode PH8EFP

Parameter	Specification
Measured object	Hydrogen ion concentration (pH) in aqueous solution
Measurement principle	Glass electrode method
Measuring range	pH 0 to 14
Measuring temperature	-5 to 105℃
Measuring pressure	Atmospheric pressure to 10 kPa (General purpose) Atmospheric pressure to 500 kPa (Medium pressure)
Temperature compensation sensor	Pt1000
Weight	Approx. 0.4 kg
Digital communication	SENCOM4.0 (with Variopin connector and SA11 adapter)

2. ORP Sensors

2-1. KCl Refillable Type Electrode OR8ERG

Parameter	Specification
Measured object	Oxidation-Reduction potential in aqueous solution
Measurement principle	Metal electrode method
Measuring range	-1500 to 1500 mV
Measuring temperature	-5 to 80℃
Measuring pressure	Atmospheric pressure to 50 kPa
Weight	Approx. 0.4 kg

2-2. KCl Filling Type Electrode OR8EFG

Parameter	Specification
Measured object	Oxidation-Reduction potential in aqueous solution
Measurement principle	Metal electrode method
Measuring range	-1500 to 1500 mV
Measuring temperature	-5 to 105℃
Measuring pressure	Atmospheric pressure to 10 kPa (General purpose) Atmospheric pressure to 500 kPa (Medium pressure)
Weight	Approx. 0.4kg
