مكان المنشأ:
الصين
اسم العلامة التجارية:
kacise
إصدار الشهادات:
ce
رقم الموديل:

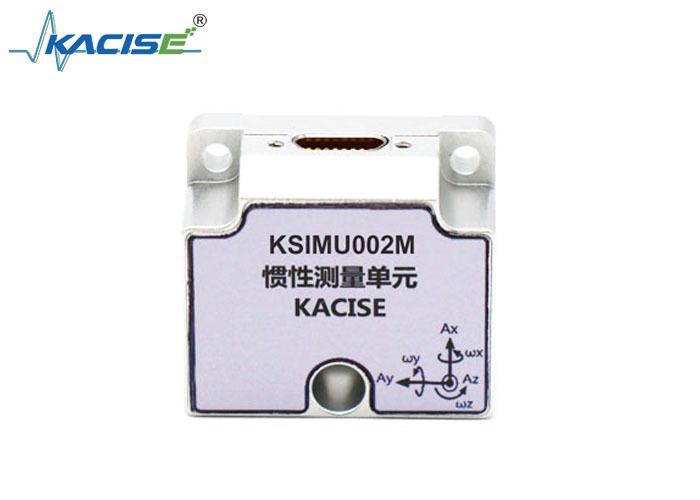

KSIMU002M
| Attribute | Value |
|---|---|
| Voltage | 5V |
| Power consumption | 1.5W |
| Ripple | 100mV |
| Pitch Angle accuracy (-90°~+90°) | <0.1° |
| Roll Angle accuracy (-180°~+180°) | <0.1° |
| Parameter | Specification |
|---|---|
| Voltage | 5V |
| Power consumption | 1.5W |
| Ripple | 100mV |
| Parameter | Specification |
|---|---|
| Weight | 55g |
| Pitch Angle accuracy (-90°~+90°) | <0.1° |
| Roll Angle accuracy (-180°~+180°) | <0.1° |
| Course angle (-180°~+180°) | --° |
| Parameter | Specification |
|---|---|
| Measuring range (customizable) | ±500°/s |
| Bias stability (@Allan variance) | 0.5°/h |
| Random walk | 0.15°/√h |
| Bias repeatability | 10°/h |
| Bias acceleration sensitivity | 1°/h/g |
| Scale factor nonlinearity (room temperature) | 200ppm |
| Scale factor repeatability (room temperature) | 200ppm |
| Cross coupling | 0.1% |
| Bandwidth | 250Hz |
| Parameter | Specification |
|---|---|
| Measuring range (can be customized) | ±30g |
| Bias stability (Allan Variance @25°C) | 50μg |
| Bias temperature coefficient (@-45°C～+85°C) | 10mg |
| Random walk | 0.2m/s/√h |
| Zero bias repeatability | 0.5 |
| Scaling factor repeatability | 300 |
| Scale factor non-linearity | 100 |
| Bandwidth | 100 |
| Parameter | Specification |
|---|---|
| Operating temperature | -45°C～+85°C |
| Storage temperature | -55°C～+105°C |
| Vibration | 10~2000Hz, 6.06g |
| Impact | 5000g, 0.1ms |
