مكان المنشأ:
الصين
اسم العلامة التجارية:
KACISE
إصدار الشهادات:
CE
رقم الموديل:
KSINS014C
| Attribute | Value |
|---|---|
| Position Accuracy | 1nmile/12h |
| Pitch & Roll Accuracy | <0.0013° |
| Heading Accuracy | < 0.008° |
| Speed Accuracy | <0.1m/s |
| Initialization Time | <13min |

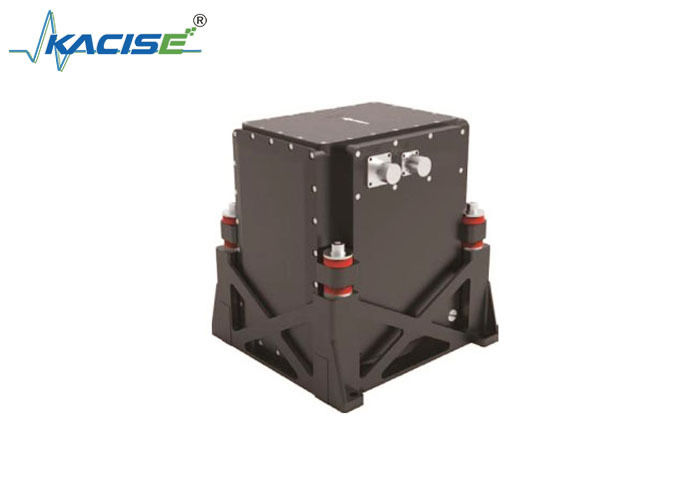

The KSINS014C is a dual-axis rotating inertial navigation system utilizing high-precision fiber optic gyroscopes and quartz flexible accelerometers. Its rotational modulation technology effectively suppresses navigation error divergence while providing real-time output of position, speed, attitude, angular rate, and linear acceleration data.
Ideal for all types of large and medium-sized long-endurance UAV systems.
| Performance Indicators | |
|---|---|
| Position Accuracy | 1nmile/12h |
| Pitch & Roll Accuracy | <0.0013° |
| Heading Accuracy | <0.008° |
| Speed Accuracy | <0.1m/s |
| Initialization Time | <13min |
| Mechanical/Electrical Interface | |
| Steady state power consumption (W) | <36 |
| Power supply (V) | 18~32 |
| Output | RS-422, RS-232, CAN |
| Size (mm) | 180×228×247 |
| Weight (Kg) | <12.5 |
