اسم العلامة التجارية:
Honeywell
إصدار الشهادات:
ce
رقم الموديل:
RBA500
| Attribute | Value |
|---|---|
| Input range | ±70 g |
| One year repeatability | <4 mg |
| Scale Factor | 80 Hz/g |
| Input voltage | +14 to +16 VDC |
| Current | <5 mA |

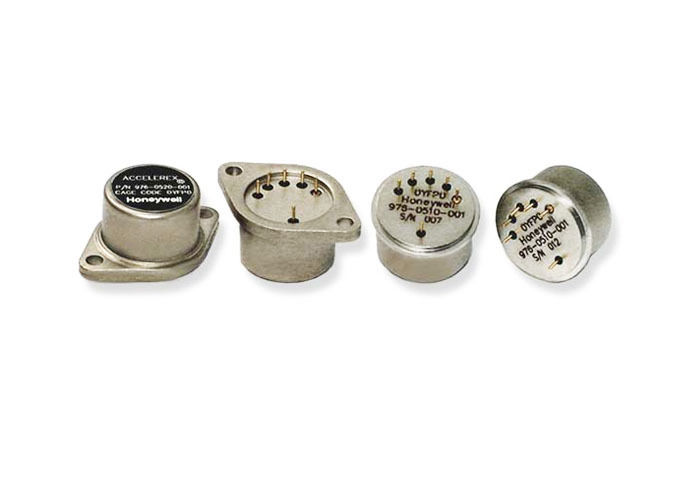

Accelerex® RBA500 Accelerometer is a digitally-compatible frequency output sensor designed to supplement GPS navigation systems. This compact, high-performance accelerometer is ideal for applications requiring frequency output, high-g measurement, small size, low power consumption, and light weight.
The RBA500 measures acceleration through the frequency difference between two vibrating quartz beams. Its output is thermally compensated using an internal temperature sensor and Honeywell-supplied coefficients, providing direct delta Velocity measurement when integrated over time.
| Category | Parameter | Value |
|---|---|---|
| Performance | Input range | ±70 g |
| Bias - One year repeatability | <4 mg | |
| Scale Factor | 80 Hz/g | |
| Scale Factor - One year repeatability | <450 ppm | |
| Axis misalignment | <12 mrad | |
| Axis misalignment - One year repeatability | <400 μrad | |
| Resolution/Threshold | <1 μg | |
| Bandwidth | >400 Hz | |
| Environmental | Operating temperature range | -55 to +105°C |
| Shock | 250 g | |
| Vibration | 20g, peak, DC - 2000 Hz | |
| Electrical | Input voltage | +14 to +16 VDC |
| Current | <5 mA | |
| Power | <75 mW @ +15 VDC | |
| Physical | Weight | 12 grams |
| Size | 0.80 in. dia. x 0.42 in. high | |
| Case material | Stainless Steel |
