Place of Origin:
CHINA
اسم العلامة التجارية:
kacise
إصدار الشهادات:
ce
Model Number:
KSGYR101M
| Attribute | Value |
|---|---|
| Input Voltage | +5.0 Vdc |
| Input Current | < 8 mA @ +5.0 Vdc |
| Scale Factor over Temperature | < 0.1%/°C |
| G Sensitivity (Typical) | < 0.05°/sec/g |
| Bandwidth (-3 dB) | > 50 Hz |
| Non-Linearity (% Full Range) | < 0.05% |

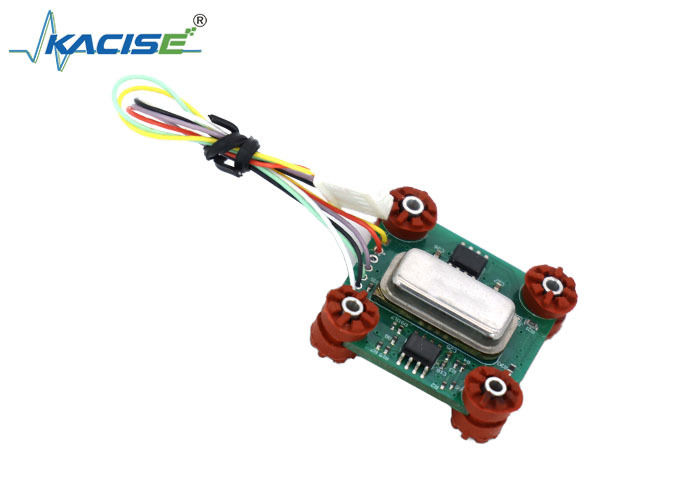

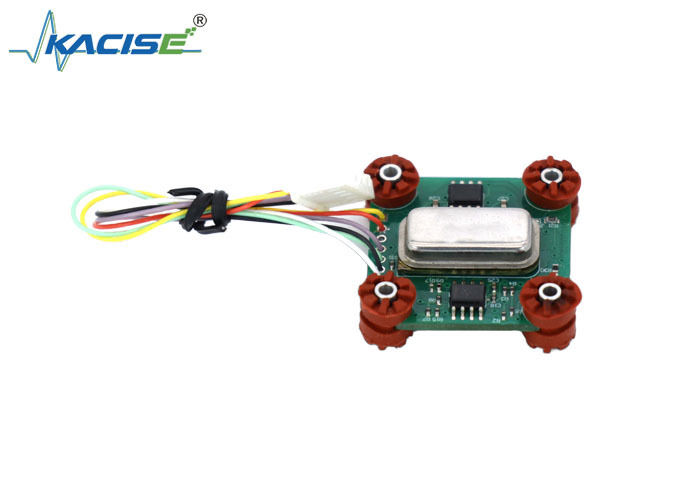

The KSGYR101M MEMS Quartz Angular Rate Sensor (Low Cost Gyro 50) features a MEMS (micro-electro-mechanical system) single-axis angular velocity sensor on a compact PC board. This complete unit requires only a single DC voltage input to measure angular rate, making it ideal for embedded applications requiring installation versatility, cost-effectiveness, robustness, and performance comparable to more expensive instrument-grade rate sensors.
| Power Requirements | |
|---|---|
| Power Voltage | 5V DC |
| Power @ 25°C | 50mW |
| Supply Current | ≤8mA |
| Output Range | 0.5-4.5(V) |
| Data Updating Rate | 1000Hz |
| Performance | |
|---|---|
| Range | ± 20°/s |
| Size | 29.4mm × 29.4mm × 10.7mm |
| Run-up Time | 2s |
| Bias | +2.5 Vdc ± 0.6 Vdc |
| Bias Stability | ≤1.0°/s |
| Bias Temperature Sensitivity | 10°/s |
| Scale Factor | 50 mV/°/s ± 15% |
| Scale Factor Temperature Sensitivity | ≤ 0.1%/°C |
| Scale Factor Nonlinearity | ≤0.05% |
| Noise | ≤ 0.05°/s/g |
| Resolution | ≤ 0.005°/s/√ Hz |
| Bandwidth | ≥50Hz |
| Weight | ≤12g |
| Environmental Specifications | |
|---|---|
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +100°C |
| Random Vibration | 5g rms |
| Survival Shock | 10g rms |
| Shock | 500g 1/2sine 2ms |
