مكان المنشأ:
الصين
اسم العلامة التجارية:
KACISE
إصدار الشهادات:
CE
Model Number:
GX
فيديو
فيديو
|
Measurement Range |
-0.1…0~0.01…~100MPa |
|
Proof pressure |
≤1.5X rated pressure |
|
Pressure type |
Gauge, absolute ,sealed gauge |
|
Accuracy |
±0.25%(typical) ±0.5%(Max.) |
|
Long stability |
±0.3%F.S/year |
|
Temperature Error- Zero |
±0.03%F.S/°C(≤100KPa) ±0.02%F.S/°C(>100KPa) |
|
Temperature Error -Span |
±0.03%F.S/°C(≤100KPa) ±0.02%F.S/°C(>100KPa) |
|
Operating Temperature Range |
-20°C~80°C |
|
Storage Temperature Range |
-40°C~120°C |
|
Power supply |
24VDC or 220VAC |
|
Output signal |
Analog: 4~20mA |
|
Pressure port |
M20×1.5, G1/2 or customize |
|
Relay control |
1~3 way relay AC220V/3A |
|
Life of contact point |
More than 100000 times |
|
Display |
-1999~9999 |
|
Housing material |
1Cr18Ni9Ti stainless steel |
|
Diaphragm material |
316L |
|
O ring |
Fluororubber |
|
Cable |
Polyethylene |
|
Insulation resistance |
100MΩ 100VDC |
|
Protection |
IP65 |
2. Feature :
Wide range, Full stainless steel.
Various pressure point.
100mm profile.
High light LED display.
Two supply power mode 24VDC or 220VAC.
Marking:ExiaIICT6
Can provide Max. 3 way control contact point,
value of contact point and status of contact point can be set freely
3. Application:
Compatible with 316LSS, noncorrosive liquids.
Apply in Petroleum industry, chemical industry, electric power, metallurgy, hydrology etc process control.

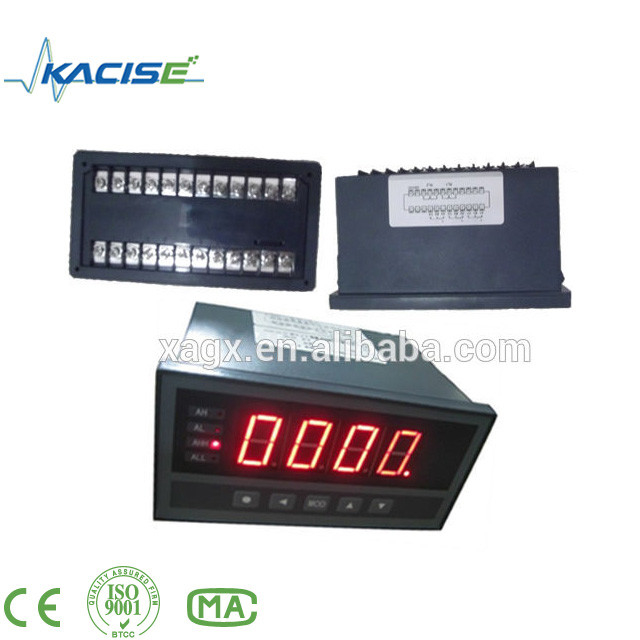

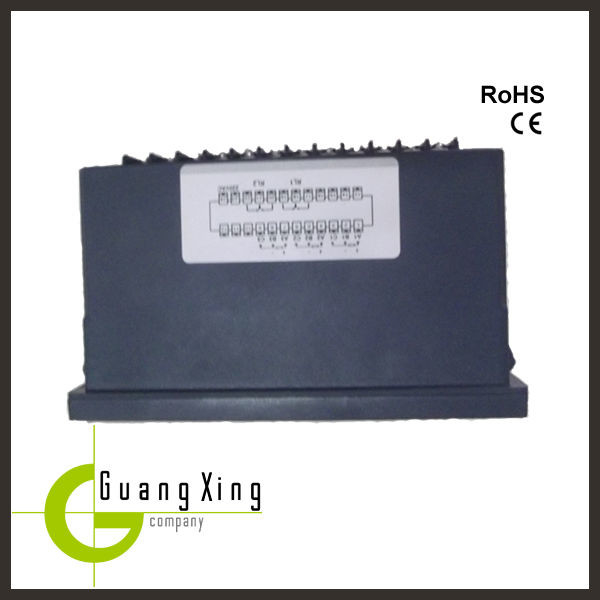

4. Product picture
|
|
|
|
5. Ordering information
1. Media must compatible with wetted part.
2. When release order, please mark :power supply, accuracy, number of control point and whether need RS485 interface.
3. To ensure the products can working reliable, we suggest that customer install lightning protection device and make sure products & power are earthed.
4. Special requirement ,such as strong shock, moment vibration, strong electromagnetism, radio frequency interference ,please consult us.
******************************************************************************************************************************************
