KPG series air compressor pressure gauge
GXDPG digital pressure manometer gauge measuring, display, control & transmit together. Can be easy installed to measuring pressure at the scene .It can set the zero output ,span output, pressure of contact point and control pressure with key at scene.
Feature
1. Wide range, full stainless steel.
2. Various pressure point.
3. Diameter 100mm profile.
4. High light LED display.
5. Two supply power mode 24VDC or 220VAC.
6. Marking: ExiaIICT6
7. Can provide Max. 3 way control contact point,
8. Value of contact point and status of contact point can be set freely
Application
1. Compatible with 316LSS, noncorrosive liquids.
2. Apply in Petroleum industry, chemical industry, electric power, metallurgy, hydrology etc process control
Specification
| Measurement Range | -0.1...0~0.01...~100MPa |
| Proof pressure | ≤1.5X rated pressure |
| Pressure type | Gauge, absolute ,sealed gauge |
| Accuracy | ±0.25%(typical) ±0.5%(Max.) |
| Long stability | ±0.3%F.S/year |
| Temperature Error- Zero | ±0.03%F.S/°C(≤100KPa) ±0.02%F.S/°C(>100KPa) |
| Temperature Error -Span | ±0.03%F.S/°C(≤100KPa) ±0.02%F.S/°C(>100KPa) |
| Operating Temperature Range | -20°C~80°C |
| Storage Temperature | -40°C~120°C |
| Power supply | 24VDC or 220VAC |
| Output signal | Analog :4~20mA |
| Pressure port | M20×1.5 , G1/2 or customize |
| Relay control | 1~3 way relay AC220V/3A |
| Life of contact point | More than 100000 times |
| Display | -1999~9999 |
| Housing material | 1Cr18Ni9Ti stainless steel |
| Diaphragm material | 316L |
| O ring | Fluor or ubber |
| Cable | Polyethylene |
| Insulation resistance | 100MΩ 100VDC |
| Protection | IP65 |
Dimension

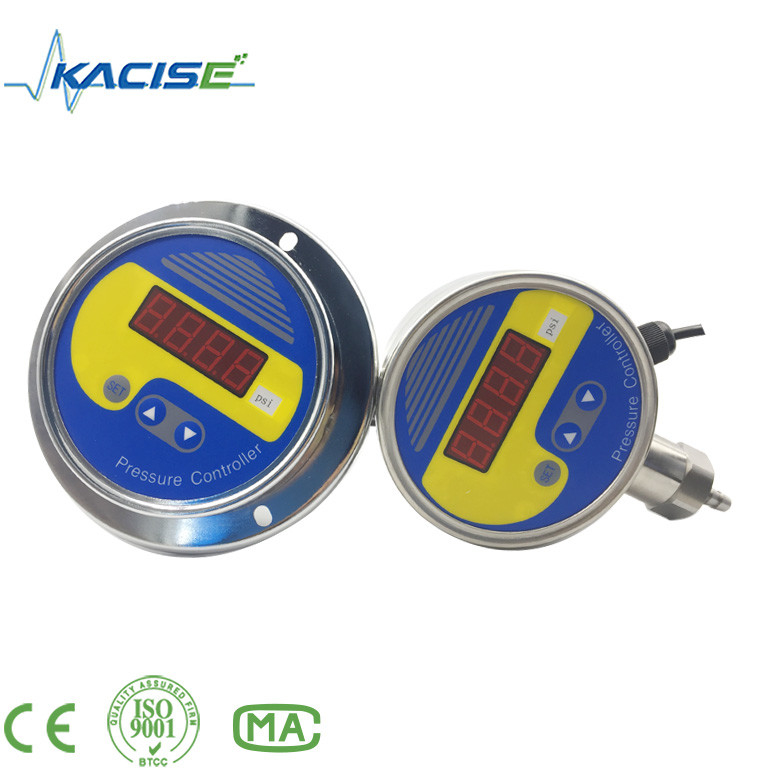

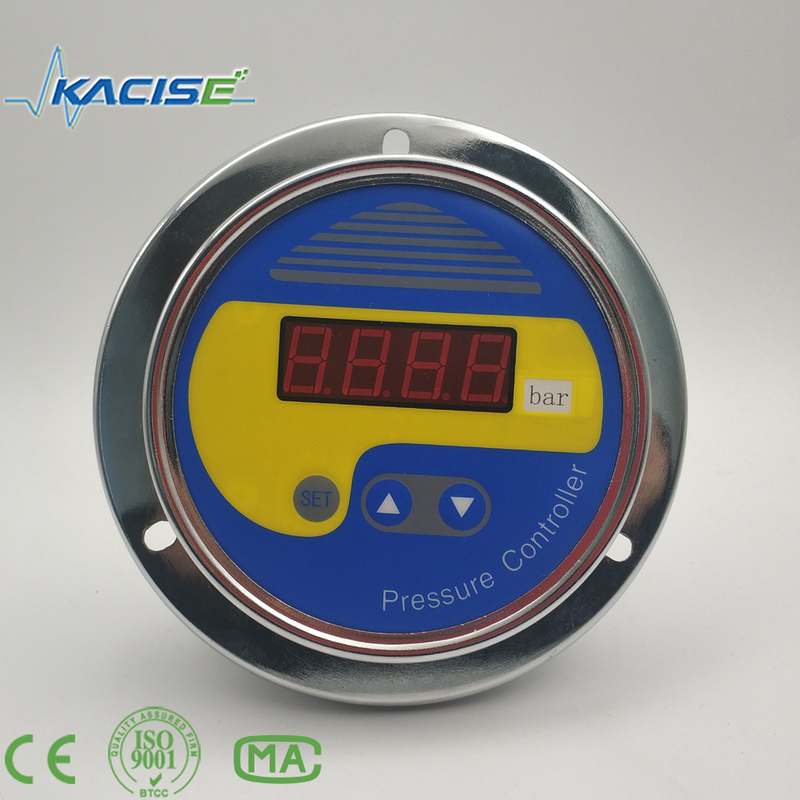

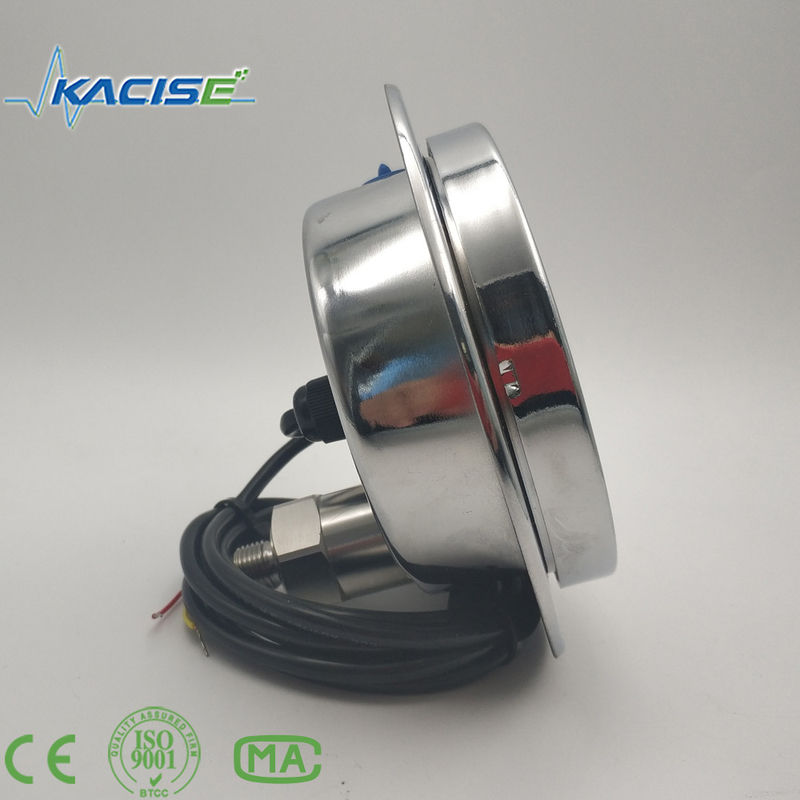

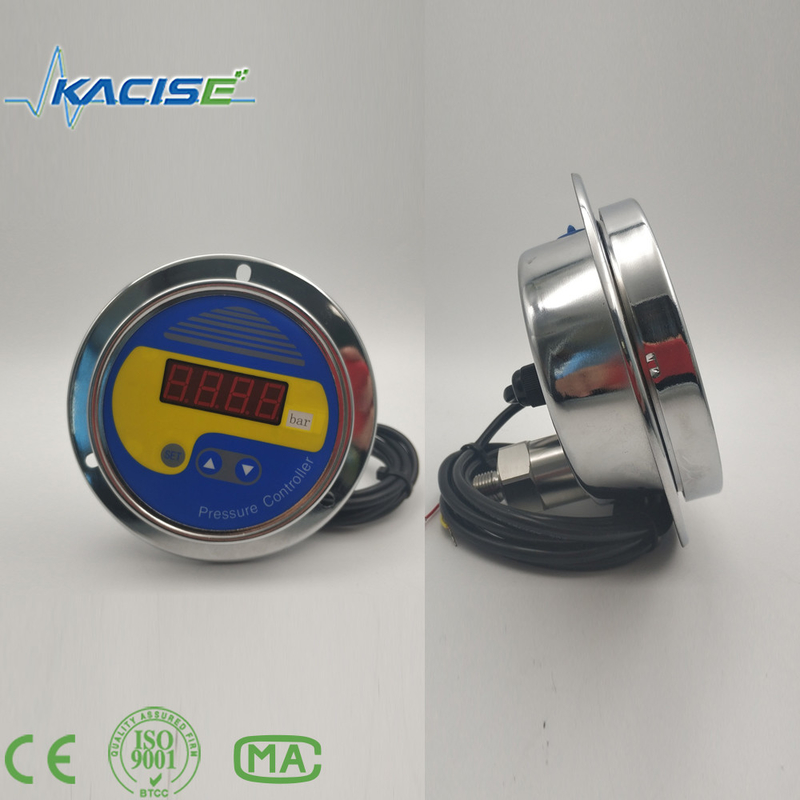

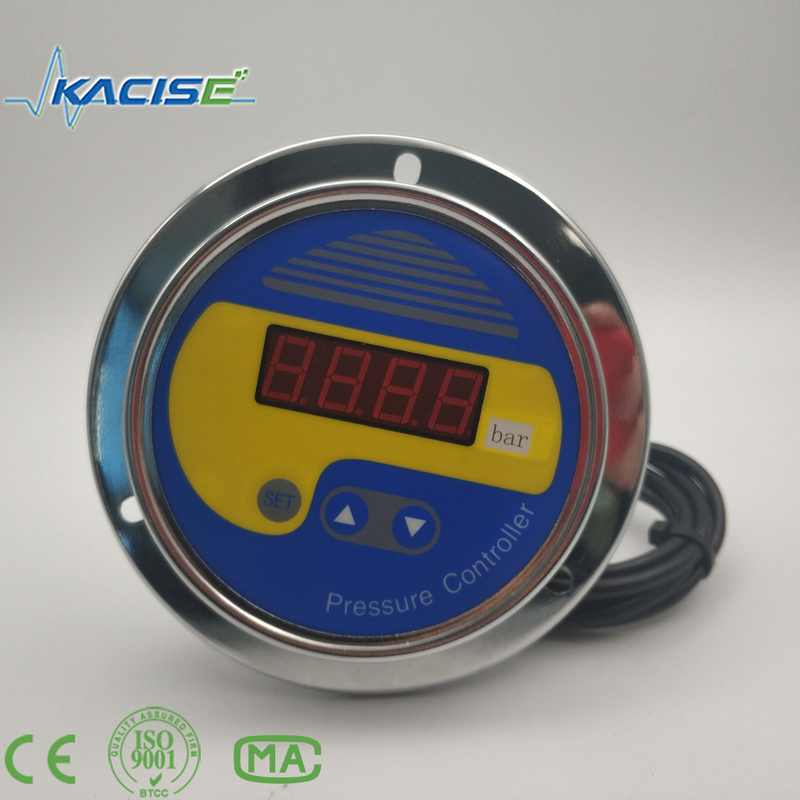

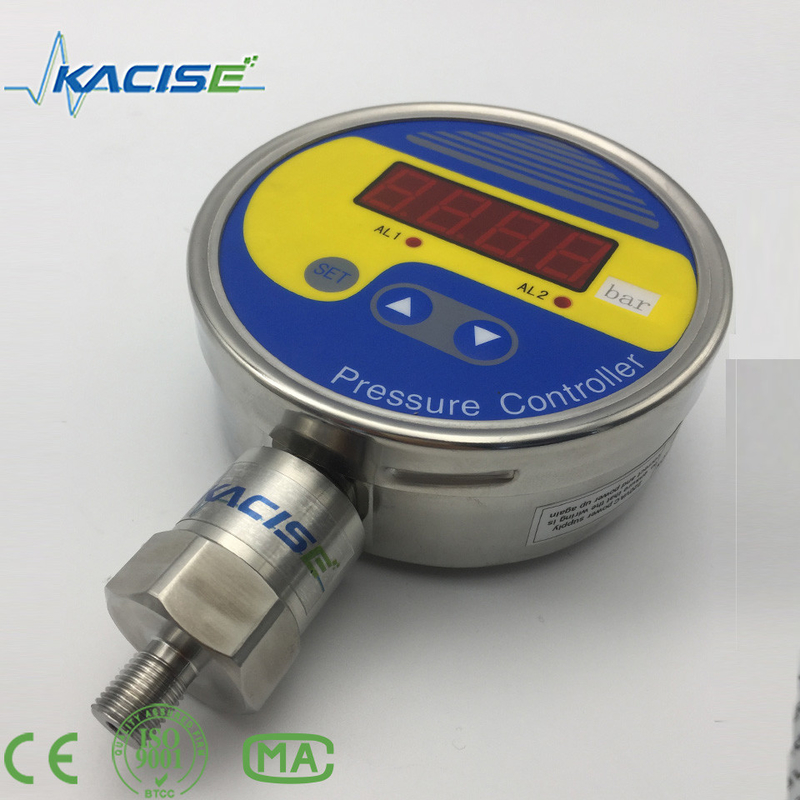

Product picture
