RS-485 Output ABS Shell Salinity Sensor For Brackish Water with resolution 0.1 PSU

RS-485 Output ABS Shell Salinity Sensor For Brackish Water with resolution 0.1 PSU

ABS Shell salinity sensor,70.0 PSU water salinity sensor,RS-485 Output salinity sensor

70.0 PSU water salinity sensor

RS-485 Output salinity sensor

Place of Origin:

CHINA

اسم العلامة التجارية:

kacise

إصدار الشهادات:

CE

Model Number:

KSA601

اتصل بنا
اطلب اقتباس
تفاصيل المنتج
Range Range:
0 ~ 70.0 PSU
Resolution:
0.1 PSU
Precision:
± 1.5% f.s. , ± 0.5 °C
Operating temperature:
0 ~ 65 °C
Working pressure:
< 0.6 mpa
Power Supply:
12 ~ 24 VDC
إبراز:

ABS Shell salinity sensor,70.0 PSU water salinity sensor,RS-485 Output salinity sensor

,

70.0 PSU water salinity sensor

,

RS-485 Output salinity sensor

شروط الدفع والشحن
Minimum Order Quantity
0-100
الأسعار
$0-$400
Packaging Details
Common package or custom package
Delivery Time
3-10days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100
وصف المنتج

KSA601 Online Salinity Sensor Seawater/Brackish Water/Various Water Supplies/Industrial Water Output: RS-485

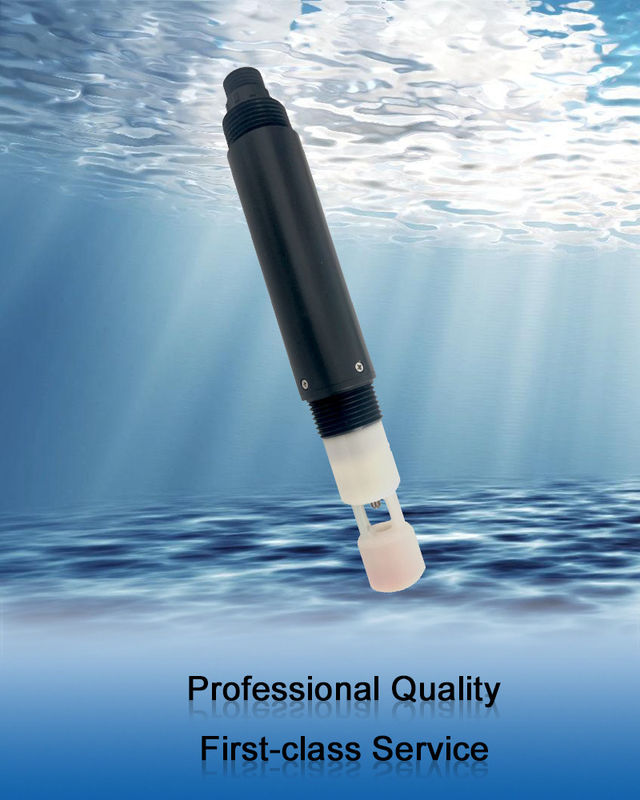

RS-485 Output ABS Shell Salinity Sensor For Brackish Water with resolution 0.1 PSU 0



1.Description of Application Environment



Seawater/brackish water/various water supplies/industrial water treatment Signal Output: RS-485(Modbus/RTU digital signal) Convenient to connect to PLC, DCS, Industrial Control Computer, General Controller, paperless recording instrument or touch screen and other third-party equipment.Immersion mounting, 3/4”NPT pipe threads for easy immersion mounting or installation in piping and tank.”.Ip 68, containment level.



2.Technical Specifications



Model number KSA601
Range Range 0 ~ 70.0 PSU
Resolution 0.1 PSU
Precision ± 1.5% f.s. , ± 0.5 °C
Operating temperature 0 ~ 65 °C
Working pressure < 0.6 mpa
Power Supply 12 ~ 24 VDC
Signal output RS-485(Modbus/RTU)
Shell material ABS (default)/POM
Installation mode Immersion mounting, 3/4”NPT pipe threads.”
Cable length 5 meters, other length can be customized
Temperature compensation Automatic temperature compensation (PT1000)
Calibration mode Two-point calibration
Power consumption 0.2W@12V
Protection level IP68



3.Dimensional Drawing

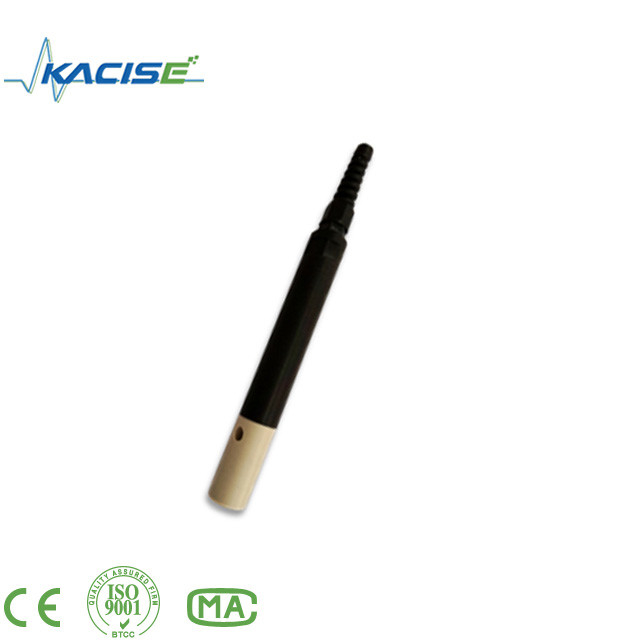

RS-485 Output ABS Shell Salinity Sensor For Brackish Water with resolution 0.1 PSU 1



























Note: Sensor Connector is M16-5 core waterproof connector









4.Installation and Electrical Connection



 4.1 Installation





RS-485 Output ABS Shell Salinity Sensor For Brackish Water with resolution 0.1 PSU 2



Note: The sensor should be installed at least 2 cm from the bottom and side walls of the container during testing.



4.2 Electrical connection



The cable is a 4-core twisted pair shielded wire defined in line sequence: Red wire -- power cord (12 ~ 24 V DC)

Black line (GND)

Blue line -- 485 a

         White line -- 485 b

Before electrification, the wiring sequence should be carefully checked to avoid unnecessary losses caused by wiring errors.

Wiring instructions: Consider the cable long-term immersion in water (including seawater) or exposed to air, all wiring are required to do waterproof treatment, customer cable should have a certain anti-corrosion ability.



5.Maintenance



5.1 Use and Maintenance



Electrode cleaning method:

Inductive salinity electrode is basically maintenance-free, the shell of pollution or mild scaling does not affect its normal work.

If cleaning, with a soft brush or sandpaper to remove the attachment, and then use distilled water cleaning, after the calibration operation.

Because inductance type electrode often works in easy to scale up or dirty environment, cleaning can be appropriate to increase the force. A minor scratch on the electrode surface does not affect the normal operation of the electrode, but to avoid penetrating the electrode shell.

5.2 Calibration



Zero calibration

Rinse the sensor with distilled water and drain the liquid with filter paper. The sensor is connected to the power supply and placed vertically in the air for about 3 minutes. After the numerical value is stable, zero calibration is carried out.

B) slope calibration

Place the sensor vertically in a standard solution (20% full range-full range) and note that the sensor front end is at least 2 cm from the bottom and side walls of the container for slope calibration. The instruction refers to the calibration instruction in the attached data communication.



6.Quality and Service



Quality inspection departments have standardized inspection procedures, with advanced and perfect testing equipment and means, and in strict accordance with the rules of inspection, 72-hour aging of products to do experiments, stability experiments, do not let a unqualified product factory.

The consignee will return the lot of the product with 2% nonconformity rate, and all the cost will be borne by the supplier. The standard of consideration refers to the product description provided by the supplier.

Guarantee the quantity and speed of delivery.



7.Spare Parts and Spare Parts



This product includes:

1 sensor

1 copy of instruction manual Certificate 1

Our company provides after-sale service for one year from the date of sale, but does not include damage caused by improper use. If repair or adjustment is needed, please return it at your own expense, the company will repair the damage of the instrument free of charge.

8.Company Information



RS-485 Output ABS Shell Salinity Sensor For Brackish Water with resolution 0.1 PSU 3

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.

Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
