Intelligent Radar Level Gauge Microwave Pulse Measurement For Liquid / Paste 6G

Intelligent Radar Level Gauge Microwave Pulse Measurement For Liquid / Paste 6G

ultrasonic level transmitter,ultrasonic liquid level sensor

ultrasonic liquid level sensor

مكان المنشأ:

الصين

اسم العلامة التجارية:

KACISE

إصدار الشهادات:

CE

Model Number:

KLD-601/602

اتصل بنا
اطلب اقتباس
تفاصيل المنتج
Aerial:
Rod Antenna
Casing:
Aluminum/Plastic
Connection:
Flange (optional) / Thread
Frequency:
6GHz
Temperature:
(-40 ~ 180) ℃
Power Source:
Two-wire (DC24V) Four-wire(DC24V/AC220V)
Protection Class:
IP65/IP67
Intrinsically safe:
Exia IIC T6 Ga
Standard:
Non-explosion-proof
إبراز:

ultrasonic level transmitter,ultrasonic liquid level sensor

,

ultrasonic liquid level sensor

شروط الدفع والشحن
الحد الأدنى لكمية
قطعة واحدة
الأسعار
قابل للتفاوض
تفاصيل التغليف
تحتوي كل وحدة على صندوق فردي ويتم تعبئة جميع الصناديق في عبوات قياسية أو حسب طلبات العملاء
وقت التسليم
5-8 أيام عمل
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
القدرة على العرض
1000 قطعة / قطع أسبوع قابل للتفاوض
وصف المنتج

Intelligent Radar Level Gauge Microwave Pulse Measurement For Liquid / Paste 6G









Introduction



Antenna system to launch and microwave receiving energy is very low, very short pulse. Radar waves travel with the speed of light. The running time can be through the electronic components are converted into a signal. Measurement of this special time extension method can realize stable, accurate in a very short period of time.

Even if the condition is very complex, the presence of false echo, with the latest micro-processing technology and debugging software also can analyze the level echo accurately.

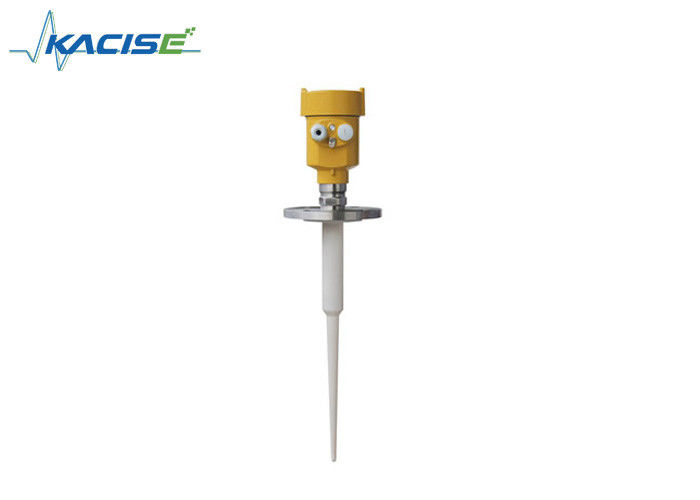

Intelligent Radar Level Gauge Microwave Pulse Measurement For Liquid / Paste 6G 0

Parameters

Suitable for Medium Liquid, slightly corrosive liquid
Explosion-proof Grade Exia IIC T6 Ga/ Exd ia IIC T6 Gb
Measuring Range 20m
Aerials The Rod Antenna (PP/PTFE)
Frequency 6GHz
Temperature (-40 ~ 130) ℃
Measurement Precision ±10mm
Process Pressure (-0.1 ~ 0.3) MPa
The signal Output (4 ~ 20) mA/HART
The Scene Display

Four LCD/can be programmed

Power Source Two-wire (DC24V) Four-wire(DC24V/AC220V)
Repeatability ± 1mm
Casing Aluminum/Plastic
Connection Flange (optional) / Thread



Tank Installation

A Standard Installation

The radar antenna cannot tilt to the tank wall

In order to minimize temperature effect,at the junction of butt joint of flange must use the spring washer

The rod antenna launching point must reach out to install pipe

The vertical placement of the rod antenna beam direction,don't let the tank wall

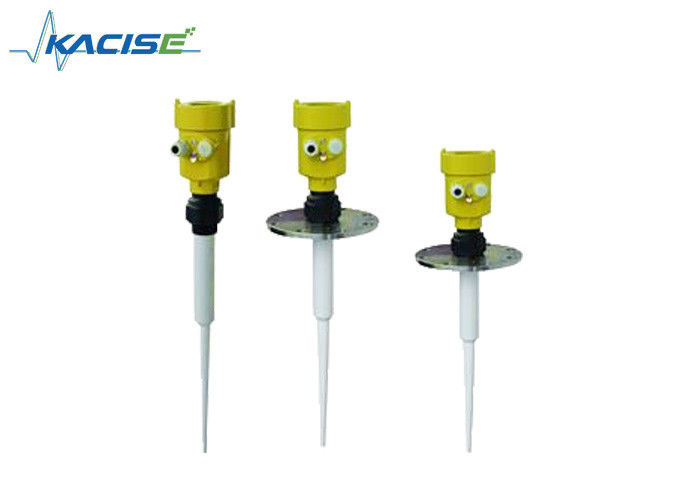

 Intelligent Radar Level Gauge Microwave Pulse Measurement For Liquid / Paste 6G 1
