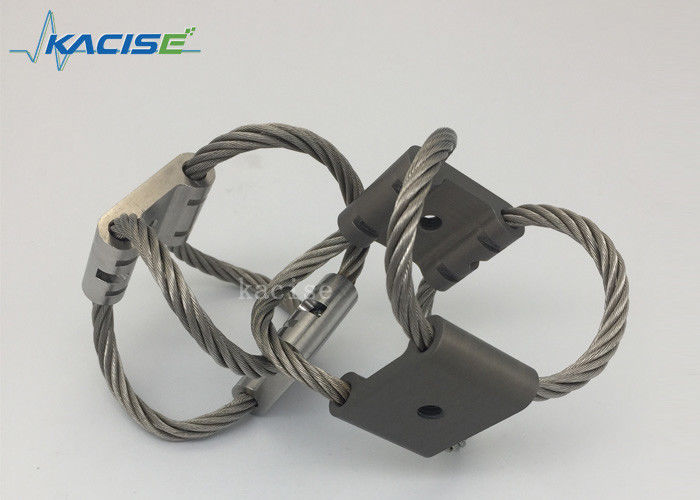

Compact wire rope isolators stabilize your UAV video camera wire damper stabilizer

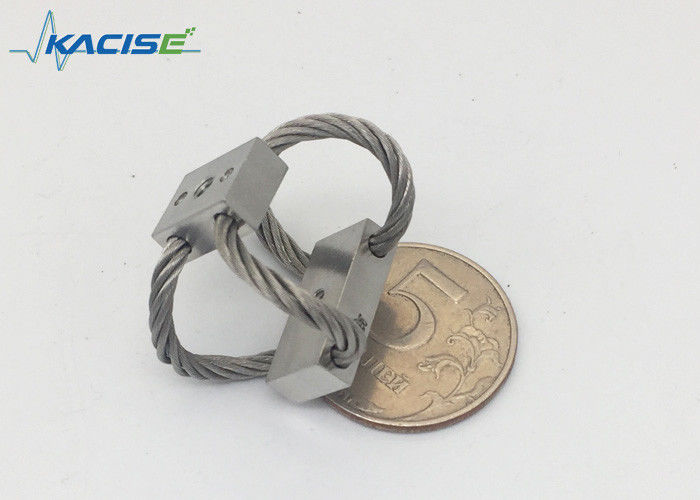

GX Compact Wire Rope Isolators feature an easy, single-point installation, which allows them to be installed in virtually any application. Their small size also permits the isolation of individual system components, makingthem ideal for use in sensitive equipment and electronics. Just as with our standard GX Wire Rope Isolators, GX Compact Wire Rope Isolators feature a patented, all-metal design and components that ensure maximum reliability, regardless of temperature or substrate requirement, and that can help meet MILSPECS similar to those of our Wire Rope Isolator series. Please refer to our “Compact Wire Rope Isolator Sizing Information”
Dimension Parameter Table
|
Model |
Height± 1.5(mm) |
Width (mm) |
Weight (kg) |
Mounting Options |
Thru Hole(mm) |
Thread (mm) |
C’sink |
|
GR1-3.3-A |
17 |
19 |
0.05 |
A,B,C, D,E,S |
φ3.3 |
M3x0.5 |
90 |
|
GR1-2.4D-A |
19 |
20 |
0.05 |
||||
|
GR1-1.8D-A |
23 |
23 |
0.05 |
||||
|
GR1-1.3D-A |
26 |
26 |
0.05 |
Table 1 GR1 Series Technical Parameters
|
Model |
Max Static Load(N) |
Max Deflection (mm) |
Kv(Vibration) (KN/m) |
Ka(Shock) (KN/m) |
|
|
GR1-3.3-A |
3.3 |
6.4 |
3.9 |
1.9 |
|
|
GR1-2.4D-A |
2.4 |
8.4 |
2.8 |
1.2 |
|
|
GR1-1.8D-A |
1.8 |
11.9 |
1.8 |
0.6 |
|
|
GR1-1.3D-A |
1.3 |
15 |
1.3 |
0.4 |
Table 2 GR1 45°Compression/Roll Load
|
Model |
Max Static Load(N) | Max Deflection (mm) | Kv(Vibration) (KN/m) | Ka(Shock) (KN/m) |
|
GR1-3.3-A |
1.6 |
8.6 |
2.1 |
0.8 |
|
GR1-2.4D-A |
1.1 |
10.9 |
1.5 |
0.4 |
|
GR1-1.8D-A |
0.8 |
14.7 |
0.9 |
0.3 |
|
GR1-1.3D-A |
0.5 |
18.3 |
0.5 |
0.1 |
Table 3 GR1 Shear/Roll Load
|
Model |
Max Static Load(N) | Max Deflection (mm) | Kv(Vibration) (KN/m) | Ka(Shock) (KN/m) |
|
GR1-3.3-A |
1.1 |
7.9 |
0.7 |
0.7 |
|
GR1-2.4D-A |
0.9 |
9.9 |
0.4 |
0.4 |
|
GR1-1.8D-A |
0.7 |
13.2 |
0.3 |
0.3 |
|
GR1-1.3D-A |
0.5 |
16.3 |
0.1 |
0.1 |
Shippment
1: Usually we ship your order by sea or by air...
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.
Package
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton or wooden box, foam outside protecting the goods against damage.
Payment
1: We accept T/T Bank transfer, L/C, Western Union, Paypal
1:Customize according to your special demand.
2: Various style for each products and completely series products.
3: Large stock for fast shipping.
4: High quality with competitive price
5: Sample order & small quantity order is ok
6: Provide free products information.
7: Reliable quality assured and active after-sell service
