Place of Origin:
China (Mainland)
اسم العلامة التجارية:
Kacise
إصدار الشهادات:
certificate of explosion-proof, CE
Model Number:
KUS550

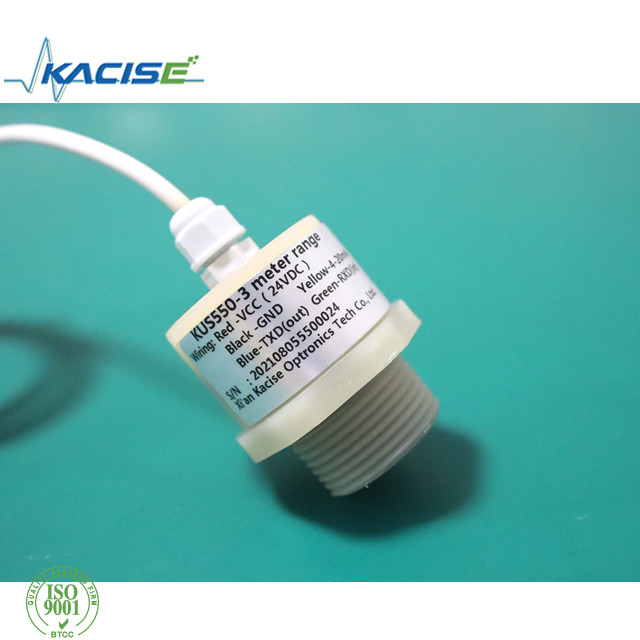

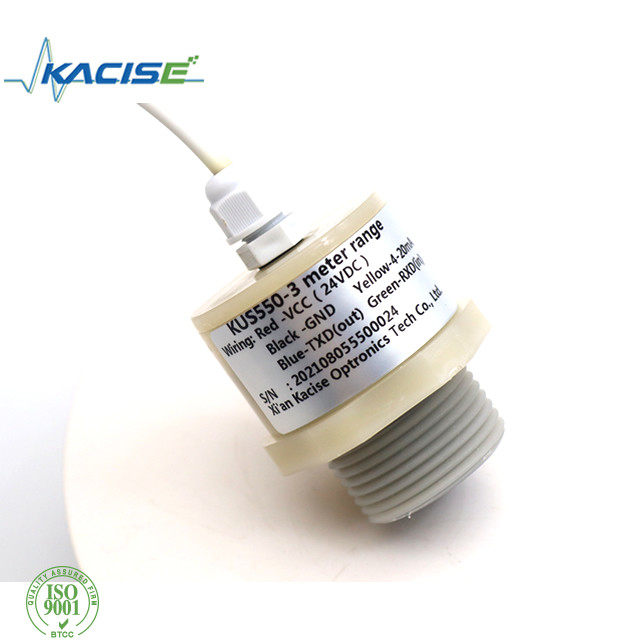

KUS550 Ultrasonic Distance Sensor
1.Product Description
This sensor provides very short to long-range detection and ranging, in a compact, robust PVC housing,
designed to meet IP65.
2. Product features:
3. Parameter
General specifications
| Model: KUS550 | |
| Measuring range |
0.25m~3m (5m customizable)KUS550A 0.15m-0.6m(1m customizable)KUS550B； |
| Blind spot | The dead zone of KUS550A is 0 ... 250 mm (within 250mm is unstable working zone, it is not recommended to work in this range); the dead zone of KUS550B is 0-150mm; |
| Supply voltage | 3.3 ... 30 VDC, ripple 10 %SS |
| Working current | ≤ 45 mA (fastest measurement speed), typical power consumption ≤ 10 mA; |
|
Output signal |
0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog output. |
| Measurement accuracy | ≤1 %F.S. |
| Temperature compensation | Yes |
| Ranging resolution | 0.1mm； |
Working conditions
| Working temperature | -40…85℃(233...358K) |
| Storage temperature | -40…85℃(233...358K) |
Other instructions
| Electrical connection | 5-core cable (analog output), 6-core cable (switch output)； |
| Protection class | IP67 |
| shell material | PVC /PVDF/PTFE/ABS |
4.Dimensions
5.Wiring
6.Application
