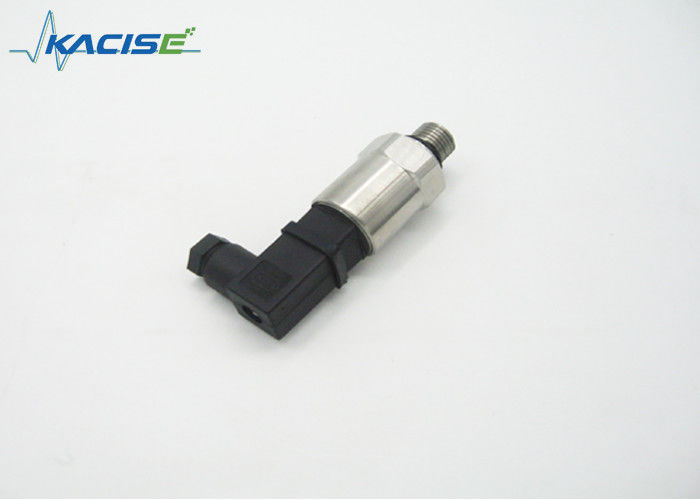

Pressure Transmitter with Output 4~20mA and 0~5V Pressure -0.1-100MPa for Farm Equipment

Pressure Transmitter with Output 4~20mA and 0~5V Pressure -0.1-100MPa for Farm Equipment

high accuracy pressure sensor,explosion proof pressure transmitter

explosion proof pressure transmitter

Place of Origin:

China

اسم العلامة التجارية:

Kacise

إصدار الشهادات:

Intrinsically safe mode E, explosion proof type D, CE

Model Number:

GXPS300

اتصل بنا
اطلب اقتباس
تفاصيل المنتج
Pressure range:
−0.1MPa……−0.01MPa~0~0.01MPa……100.0MPa
Electrical performance:
2 line 3line 4line
Operating temperature:
-40°C~85°C (or -40°C~125°C)
Accuracy:
±0.25%F.S,±0.5%F.S
Output::
4~20mA, 0~5V, 0.5~4.5V
Certificate:
Intrinsically safe mode E, explosion proof type D, CE
تسليط الضوء:

high accuracy pressure sensor,explosion proof pressure transmitter

,

explosion proof pressure transmitter

شروط الدفع والشحن
Minimum Order Quantity
1 Piece/Pieces
الأسعار
negotiable
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests avai...
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
2000 Piece/Pieces per Week
وصف المنتج

GXPS300 Pressure Transmitter with Output 4~20mA and 0~5V Pressure

 -0.1-100MPa for Farm Equipment



Feature



  • Zero-position and scale span

    Micrometer adjustment

  • Accept the one-piece, non-standard order

  • Display indicator are available

  • Digital compensation for all temp. range available

  • Multiple pressure range and signal output

  • Non polarized 2 wire system current output

  • Intrinsically safe mode explosion proof, CE

  • Range: -0.1~0MPa, 0~0.03MPa, 0~100MPa

  • Output: 4~20mA, 0~5V, 0.5~4.5V

  • Accuracy: 0.25%F.S, 0.5%F.S

  • Current: 24VDC,non-polarity wire



Instruction



The GXPS300 Series pressure transmitter is a precision, high reliability, high cost,

variable range of industrial products. Widely used in gas, liquid pressure testing, such

as water, oil, mildly corrosive liquids and gases.



Application



  • Gas-servicing equipment
  • Refrigerator
  • Hydraulic control
  • Farm equipment
  • Pressure gauge
  • Automatic inspection system
  • Energy and water treatment



Electronic interface and signals definition





Pressure Transmitter with Output 4~20mA and 0~5V Pressure   -0.1-100MPa for Farm Equipment 0




Pressure Transmitter with Output 4~20mA and 0~5V Pressure   -0.1-100MPa for Farm Equipment 1


Parameter



Spec. Numerical value
Pressure range

−0.1MPa……−0.01MPa~0~0.01MPa……100.0MPa

-0.98atm…-0.098atm~0.098atm…986atm

PSI: -14.5PSI…-1.45PSI~1.45psi…14500psi

BAR : -1BAR….-0.1BAR~0.1bar…1000bar

-10000mmH2O…-1000mmH2O~1000mmH2O…10190000mmH2O

InchHg: -29inchHg… -2.95inchHg~2.95inchHg…29500inchHg

Overload pressure 1.5 times nominal value
Rupture pressure 3 times nominal value
Accuracy ±0.25%F.S,±0.5%F.S
Stability Typical value 0.25%F.S, Max. value:0.4%F.S
Operating temperature -40°C~85°C (or -40°C~125°C)
Compensation temperature -10°C~70°C
Medium All Caustic Medium Compatible with 1Cr18Ni9Ti
Electrical performance 2 line 3 line 4 line
Output signal 4~20mA 0~20mA 0~5V 0.5~4.5V 0~20mA
0~10Vdc 1~5V 0.5~3V 0~5/10Vdc
Power supply 10~30Vdc 11~30Vdc 8~24Vdc 5V Ratio 8/11~30Vdc
Load resistance (U-10)/0.02(Ω) Current:(U-12)/0.02(Ω); voltage :>20KΩ
Insulation >100MΩ @50V
Electric strength 500V@60 second
Electrical connection DIN43650,protection IP65; air plug GX16-7, IP45; IP68
Pressure tap M20×1.5,G1/2,G1/4,G1,NPT1/2,NPT1/4,R1/4, (Ht)
Response time 10ms
Certificate Intrinsically safe mode E, explosion proof type D, CE
EMI/EMC EMI: EN50081-1/-2; EMC: EN50082-2
