A wide range of multi-output constant pressure water supply level transmitters with accuracy 0.1%F.S

piezoresistive pressure transmitter,explosion proof pressure transmitter

explosion proof pressure transmitter

Place of Origin:

Shaanxi, China (Mainland)

اسم العلامة التجارية:

KACISE

إصدار الشهادات:

Model Number:

GXPS400M

اتصل بنا

اطلب اقتباس

A wide range of multi-output constant pressure water supply level transmitters with accuracy 0.1%F.S

تفاصيل المنتج

Pressure range:

0~1......200mH20

Accuracy:

0.1%F.S, 0.25%F.S, 0.5%F.S

Operating temperature:

-40°C~85°C

Output signal:

4~20mA 0/1~5Vdc 0~10V

Power supply:

10~30Vdc 6~24Vdc/ac 11~30Vdc/ac

Medium compatibility:

All Caustic Medium Compatible with 1Cr18Ni9Ti

إبراز:

piezoresistive pressure transmitter,explosion proof pressure transmitter

explosion proof pressure transmitter

شروط الدفع والشحن

Minimum Order Quantity

1PIECE

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

2000 Piece/Pieces per Week negotiable

منتجات ذات صلة

Cerabar PMP51B - جهاز إرسال الضغط

احصل على أفضل سعر

Cerabar PMP43 جهاز نقل ضغط صحي

احصل على أفضل سعر

اتصل بنا

86--17719566736

اتصل الآن

وصف المنتج

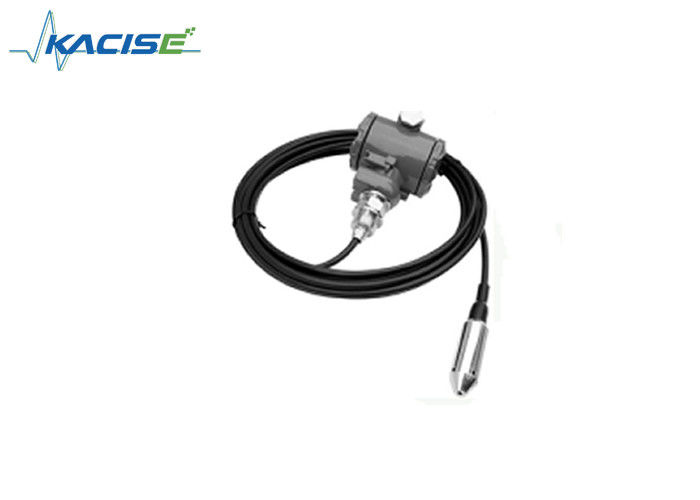

GXPS400M Multiple Output High precision and wide applicability Level Transmitter for Constant Pressure Water Supply

Application

Hydrologic monitoring
Constant pressure water supply
Frequency conversion water supply
Tail dam water level
Liquid storage tank liquid level height
Water saving irrigation
Circulation fluid consumption monitoring
Small caliber tube level

Feature

0.1, 0.25, 0.5%F.S
Split structure
Ø24 diameter
The diffused silicon oil-filed core
Multiple pressure range and signal output
Non-polarity two wire current output
Intrinsically safe, explosion proof ,CE certificate

Introduction

GXPS400M series level transmitter is a highly reliable, high stability, high accuracy, small size, split level transmitter. Widely used in the detection of a small diameter pipe and the liquid level in the reservoir fluid height. Such as water, oil, mildly corrosive liquids.

The product uses the 1Cr18Ni9Ti stainless steel structure with import oil-filled pressure core, dedicated zoom and V / I transmitter conversion circuit, which can facilitate their zero and full scale calibration and external zero and span programmable regulation.

Abrasion, oil, acid and alkali resistant, high-strength special breathable cable can be used depending on site configuration.

The intrinsically safe certificate; explosion proof; CE certificate.

Non polarity; circulation output lead of the two-wire and three-wire voltage output for both AC and DC.

Electronic interface and signals definition

A wide range of multi-output constant pressure water supply level transmitters with accuracy 0.1%F.S 0

Rear cover inside connection terminal definition
Mark	+	-
Current	24Vdc	4~20mA		Shielded
Voltage	24V(+)	Vout	24V(-)	Shielded

Parameter

Spec.	Value
Pressure range	0~1......200mH20 9.8KPa…1900KPa 0.09bar…19.6bar 0.09atm…19.3atm 1.4psi… 284psi 2.8inchHg…579inchHg
Load pressure	1.5 times nominal value pressure
Rupture pressure	3 times nominal value pressure
Accuracy	0.1%F.S, 0.25%F.S, 0.5%F.S
Stability	Typical value 0.1%F.S/year, Max. 0.2% F.S
Operating temperature	-40°C~85°C
Compensation temperature	-10°C~70°C
Medium compatibility	All Caustic Medium Compatible with 1Cr18Ni9Ti
Electrical performance	2 wire system	3 wire system
Output signal	4~20mA	0/1~5Vdc		0~10V
Power supply	10~30Vdc	6~24Vdc/ac		11~30Vdc/ac
Load pressure	(U-10)/0.02(Ω)	>100kΩ
Insulation	>100M Ω@50V
Electric strength	500V@60 second
Vibration/Impact	10g/5~2000Hz, axes X/Y/Z20g sine 11ms
Electrical connection	Waterproof cable outlet+ two rectangular ring+ sealing ring+ seal gum+ glue; IP68
Pressure port	Submersible type, transmitting box wellhead connection dimension M27×1.5
Pressure type	G		Response time: 10ms
EMI/EMC	EMI: EN50081-1/-2; EMC: EN50082-2

Ordering information

GX-Type-Range-Output-Power-Pressure port-Electric connection-Cable length-Package

Type: PS400M
Range: 0~1…500m = the upper limitation of the range
Output:: 4~20mA, 0~5V, 1~5V, 0~10V;
Accuracy: 0.1%=0.1%F.S, 0.25%=0.25%F.S, 0.5%= 0.5%F.S
Power: 24Vdc, 6-24Vdc , 10~30Vdc, 11~30Vdc
Pressure port :Submersible type, transmitting box wellhead connection dimension M27×1.5
Electric connection: waterproof joint outlet
Cable length: XXm=XX meter 1-150m
Package: Bb, Foam
