اسم العلامة التجارية:
Selec
إصدار الشهادات:
ce

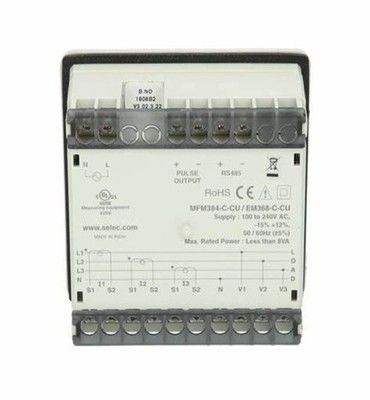

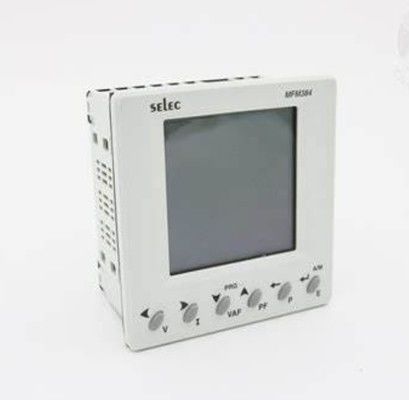

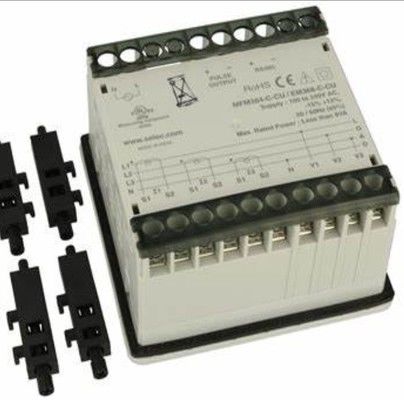

85 to 300V AC DC Digital Multifunction Meter Selec MFM384-C-CU-G
| Display Type | LCD with Backlight, Bar graph Representation for Current |
| Display Configuration | 4 Rows of 4 Digits, 1 Row of 8 Digits |
| Electrical Connection | 3Ø - 3W, 3Ø - 4W, 2Ø - 3W, 1Ø - 2W |
| Type of Output | Pulse Output |
| Features | %THD upto 31st Level, Max / Min Demand (Power), Max Demand Current, Phase Sequence Detection |
| Communication Protocol | RS485 and MODBUS RTU |
| CT Primary | 1 / 5 A to 10 kA (Programmable for Any Value) |
| CT Secondary | 1 / 5 A ( Programmable ) |
| PT Primary | 100 V to 500 kV (Programmable for Any Value) |
| PT Secondary | 100 to 500V AC (L - L) (Programmable for any value) |
| Rated Input Current | Nominal 5A AC (Min – 11mA; Max – 6A) |
| Supply Voltage | 85 to 300V AC / DC (45/65Hz) |
| Size | 96 x 96mm |
| Mounting Type | Panel Mount |
| Certification | CE, RoHS, UL & MID |
| Type | Energy Monitor |
| Measuring Type | Current, Voltage, Wattage |
| Measuring Range | - |
| Display Type | LCD - Black Characters, Backlight |
| Number of Characters Per Row | 4, 4, 4, 4, 8 |
| Display Characters - Height | 0.450" (11.43mm) |
| Output Type | - |
| Voltage - Supply | 100 ~ 240VAC |
| Panel Cutout Dimensions | Square - 91.50mm x 91.50mm |
| Mounting Type | Panel Mount |
| Termination Style | Screw Terminal |
| Ingress Protection | IP54 - Dust Protected, Water Resistant |
| Features | - |
| Operating Temperature | -10°C ~ 55°C |
| Weight | - |
| Base Product Number | MFM384 |
realtime conditions. Input Specifications: Electrical Connection 3Ø-3/4 wire, 2Ø-3 wire, 1Ø-2 wire Input Voltage Range 11 to 300V AC, (Phase to Neutral) 19 to 519V AC, (Phase to Phase) Input Current Range Nominal 5A AC (Min-11mA, Max-6A) Frequency 45Hz - 65Hz Display Scrolling Automatic / manual Power Consumption 8VA Max Display Reset Programmable (For energy) Memory Retention 10 years (For energy) Measuring Parameters Voltage (L-L / L-N) (Individual / Average) Current (I1, I2, I3) (Individual / Average) Frequency, Power Factor (Individual / Total) Active, Reactive & Apparent power (Individual / Total), Active, Reactive & Apparent Energy (Total), Demand (Min / Max Active Power, Min / Max Reactive Power, Max Apparent Power), Max Demand Current, Neutral Current, Phase Sequence Detection. Output Specifications: Pulse Output Voltage Range - External 24V DCmax Current Capacity - 100mA max ± Pulse Width 100 ms 5 ms Communication Interface RS485 and MODBUS RTU
