OEM / ODM Service UV Method COD Sensor For Industrial Sewage

Industrial Sewage COD Sensor,UV Method COD Sensor

UV Method COD Sensor

Place of Origin:

China

اسم العلامة التجارية:

Kacise

اتصل بنا

اطلب اقتباس

OEM / ODM Service UV Method COD Sensor For Industrial Sewage

تفاصيل المنتج

Product name:

COD Sensor

Application:

COD Analysor

Digital Sensor:

RS-485

Testing:

SAC, COD,TOC

Port:

Xi'an or other

إبراز:

Industrial Sewage COD Sensor,UV Method COD Sensor

UV Method COD Sensor

شروط الدفع والشحن

الأسعار

$2,500.00 - $3,000.00/pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Supply Ability

500 Piece/Pieces per Month

منتجات ذات صلة

KCW102 جهاز معالجة المياه بالأمواج الكهرومغناطيسية منخفضة التردد

احصل على أفضل سعر

KCW101 التردد - معدات معالجة المياه المعدلة بالموجات الكهرومغناطيسية

احصل على أفضل سعر

كيه إم 100 مراقبة نوعية المياه الثقيلة الآلية على الخط

احصل على أفضل سعر

KCW104 عالية الكفاءة التردد - جهاز مسح

احصل على أفضل سعر

اتصل بنا

86--17719566736

اتصل الآن

وصف المنتج

China manufacturers oem/odm service uv method cod sensor for industrial sewage

Introduction

The COD sensor is Kacise's new generation of environmentally friendly COD / TOC sensors. It does not require reagents, is non-polluting, is more economical, and is more environmentally friendly. The water volume is small, easy to install, and water quality monitoring can be performed online. Automatically compensates for turbidity disturbances and is equipped with an automatic cleaning device that maintains excellent stability even over long periods of time.

Principle

Many organic substances dissolved in water absorb ultraviolet light. Therefore, by measuring the

absorption of these organic substances by ultraviolet light at a wavelength of 254 nm, the total amount of

organic pollutants in water can be measured. The Kacise COD series sensor uses two light sources, one

254nm ultraviolet light and one 850nm infrared light, which can automatically compensate the optical

path attenuation and turbidity effects, thus achieving more stable and reliable measurement values.

Features

Digital sensor, RS-485 output, support MODBUS

No reagents, no pollution, more economical, more environmentally friendly

Can measure SAC, COD, TOC and other parameters

Automatically compensates for turbidity interference for outstanding test performance

Technical Specifications

Product	Measuring range	Application field
KWS100A (40mm gap)	SAC 0.1 to 50 1/m COD 0.15 to 75 mg/l equiv. KHP TOC 0.06 to 30 mg/l equiv KHP	Tap water treatment
KWS100B (8mm gap)	SAC 0.5 to 250 1/m COD 0.75 to 370 mg/l equiv. KHP TOC 0.3 to 150 mg/l equiv KHP	Sewage treatment plant outlet, natural waters
KWS100C (2mm gap)	SAC 1.5 to 700 1/m COD 2.5 to 1000 mg/l equiv. KHP TOC 0.9 to 410 mg/l equiv KHP	Industrial process control

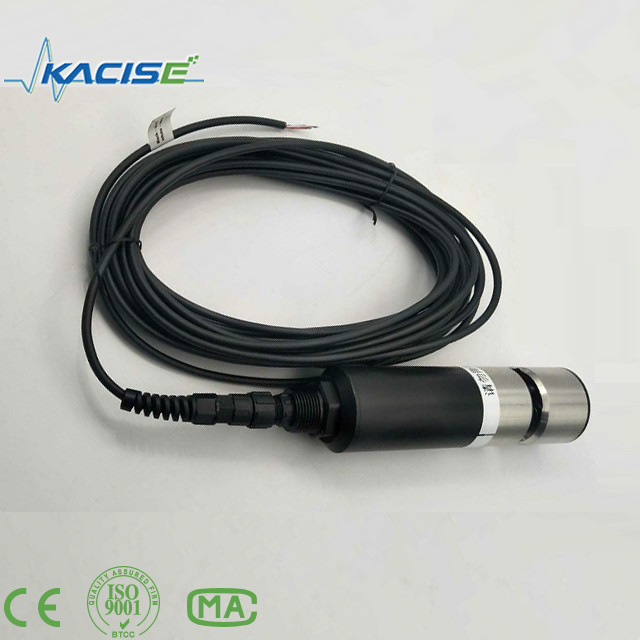

OEM / ODM Service UV Method COD Sensor For Industrial Sewage 0

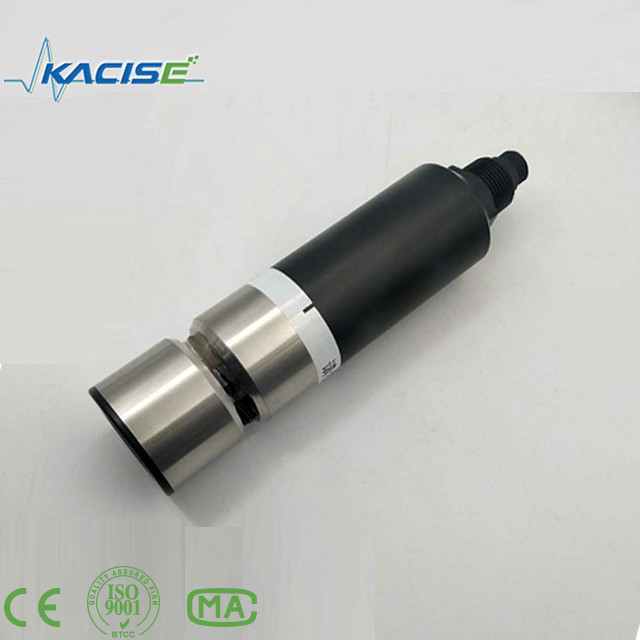

OEM / ODM Service UV Method COD Sensor For Industrial Sewage 1
