Cr Chromium Analyzer Water Quality Sensor Photoelectric Colorimeter

Cr Chromium Analyzer Water Quality Sensor Photoelectric Colorimeter

Chromium Analyzer Water Quality Sensor,Photoelectric Colorimeter Water Quality Sensor

Photoelectric Colorimeter Water Quality Sensor

Place of Origin:

CHINA

اسم العلامة التجارية:

kacise

إصدار الشهادات:

CE

Model Number:

KTR600

اتصل بنا
اطلب اقتباس
تفاصيل المنتج
Detection Factor:
Total tin
Method:
Photoelectric colorimetry;
Range:
0-5.0 mg/L;0-5.0 mg/l;
Measurement Mode:
Automatic timing, manual, continuous;
Measurement period:
Can be set arbitrarily;
Measuring time:
About 30 minutes;
Measuring accuracy:
10%;
Detection Limit:
0.1 mg/l;
إبراز:

Chromium Analyzer Water Quality Sensor,Photoelectric Colorimeter Water Quality Sensor

,

Photoelectric Colorimeter Water Quality Sensor

شروط الدفع والشحن
Minimum Order Quantity
0-100
الأسعار
$0-$9000
Packaging Details
Common package or custom package
Delivery Time
3-10days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100
وصف المنتج

KTR600 Online Total Chromium Analyzer Five Years Of Data Storage

Online Total Chromium Analyzer





Principle and Application of Total Chromium Analyzer

Chromium is one of the essential micronutrients of living things. The toxicity of chromium is related to its valence state. It is generally believed that the toxicity of hexavalent chromium is 100 times higher than that of trivalent chromium. Therefore, hexavalent chromium has been defined as one of the indicators of total quantity control in China.

Principle: under the condition of high temperature, oxidant oxidizes the chromium compound in the water sample to hexavalent chromium. In acid medium, hexavalent chromium reacts with chromogenic agent to form a purple-red complex. The absorbance of the complex is proportional to the chromium content in the water sample, the content of total chromium in water sample was obtained.

The main application scenarios are the monitoring of enterprise rainwater and sewage, the monitoring of total copper content in municipal pipe network, pumping station, groundwater, river water, lake water and sea water.



Feature



  • Digestion using integrated valve design, sealing effect is good, no leakage.
  • Digestion valve high temperature 200°, high pressure 2Mpa.
  • Touch screen with industrial design, strong adaptability to environment.
  • Pipe material USES acid alkali resistance of PTFE material.

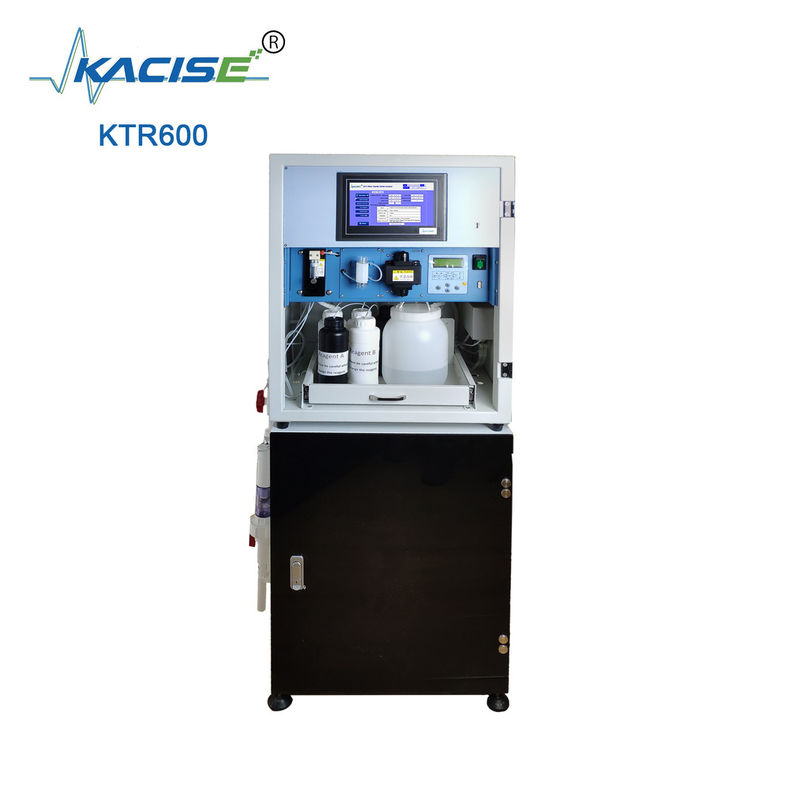

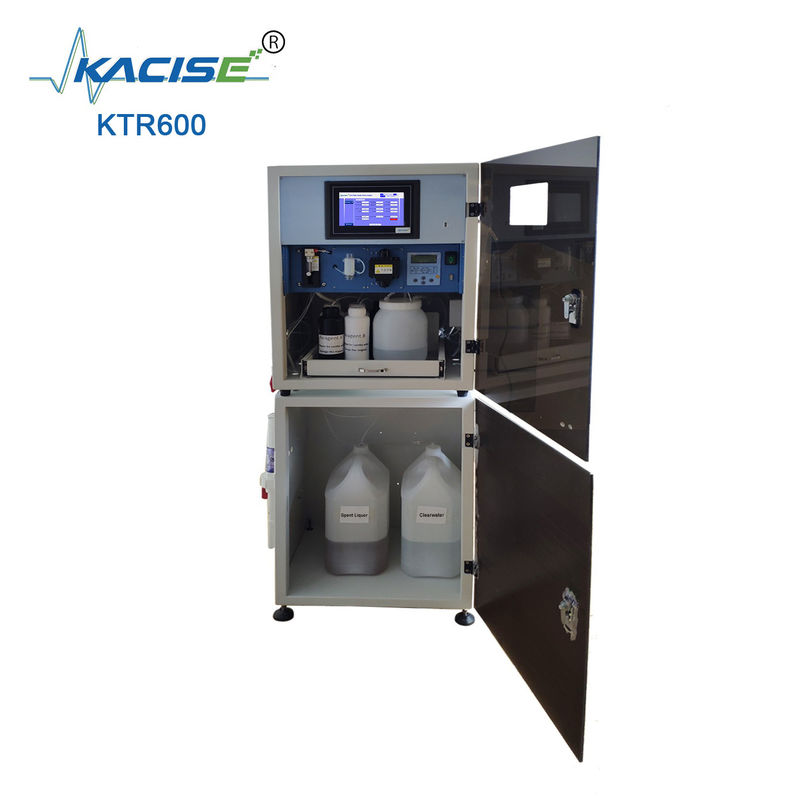

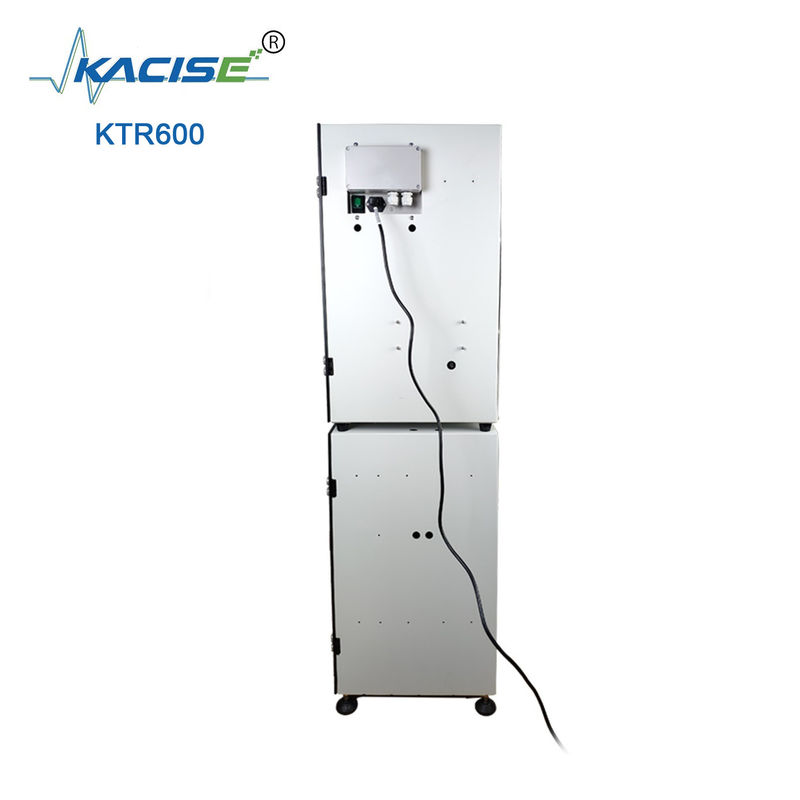

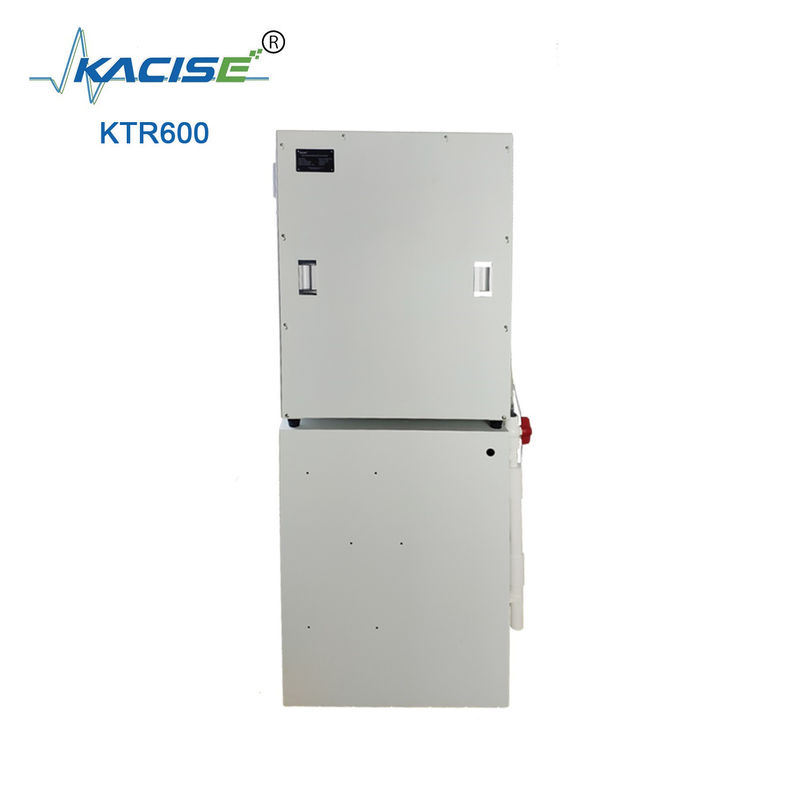

Physical object



Cr Chromium Analyzer Water Quality Sensor Photoelectric Colorimeter 0





Technical Specification of Total Chromium Analyzer



Model KTR600
Monitoring Parameter TCR
Method Diphenylcarbazide Spectrophotometer
Range (0.02-1) mg/L and (0.02-10) mg/L were expandable
Display unit 12232 dot matrix display, 7-inch LCD touch screen dual display
Measurement mode

Manual measurement, continuous measurement, periodic measurement, fixed-point measurement and automatic calibration measurement

Sample check

Measurement period Anywhere from 30 minutes to 24 hours
Zero Drift ≤ ± 5% F. S
Range Drift ≤ ± 5% F. S
Repeatability ≤5%
Indication error ≤ ± 5%
MBTF > 720 hours
Stored data Five years of data storage
Communication interface Route 24-20ma, Route 1 RS232, Route 1 RS485
Ambient Temperature (5-35) ℃
Ambient Humidity (65 ± 20) % Rh
Power Requirements Rated voltage (220 ± 22) VAC frequency (50 ± 1) % Hz
Contour Dimension 505 * 395 * 671(length * width * height unit mm)





Contact us

Website www.kacise.com

Phone +86-17719566736

Email sales@kacise.com

Location Tangyan South Road, High-tech Zone, Xi'an City, Shaanxi Province, China

Cr Chromium Analyzer Water Quality Sensor Photoelectric Colorimeter 1
