Place of Origin:
CHINA
اسم العلامة التجارية:
kacise
إصدار الشهادات:
CE,FDA
Model Number:
KBU601

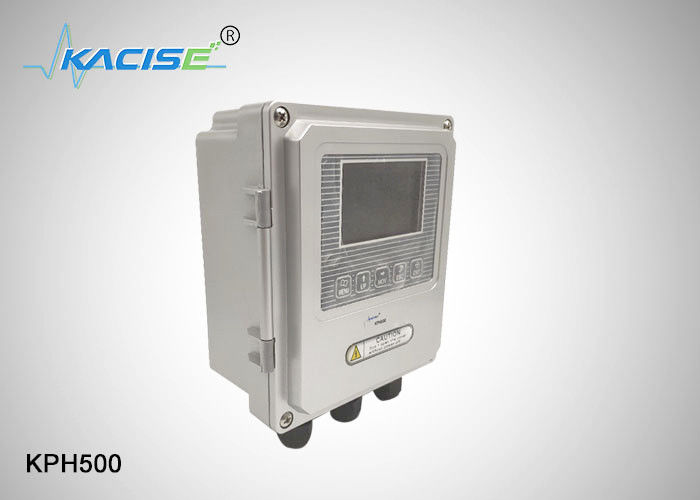

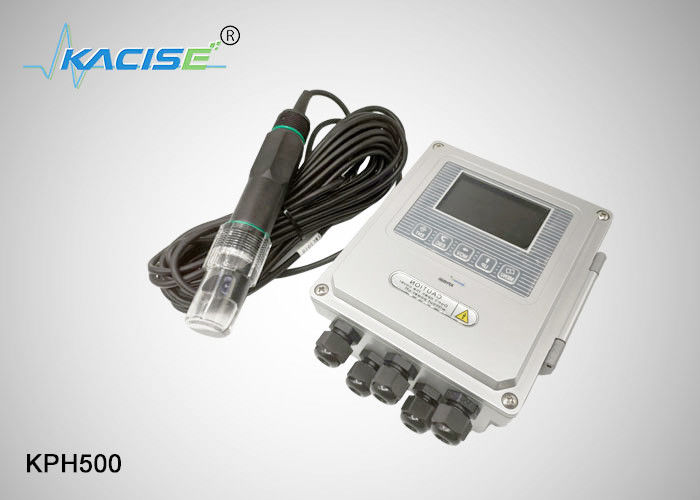

KPH500 orp/ph/free sensor Ph Sensor Probe Meter Controller Tester ph conductivity temperature sensor
Production Introduction
The PH/ORP meter is a precision meter used to detect the pH/oxidation-reduction potential of liquids. It is designed with a microcomputer based on the principle of the primary battery and is simple to operate and easy to maintain. Not affected by color, turbidity, colloidal substances, oxidants and reducing agents, it is suitable for the determination of various media such as clean water, wastewater, industrial water, chemical reagents, etc., and is widely used in agriculture, environmental protection and industry.
The sensor uses a composite electrode, which can eliminate the influence of the inconstant "K" value,
A long-term, stable and accurate measurement of PH is realized. The internal structure of the sensor is shown on the right.
Features
1. LCD display, Chinese menu operation, stable performance and strong reliability
2. High-performance operational amplifier, ORP positive and negative poles are symmetrical, small drift, high accuracy
3. Data is not lost after power off
4. Dual 4-20mA transmission output, relay high and low alarm control output, RS485 communication
Output
5. Simultaneous display of PH value, temperature value, output current value, high alarm value, low alarm value
PH/ORP technical parameters
| Class | Performance | PH parameter | OPR parameter |
| Host | Measuring range | 0-14PH | -2000mv-2000mv |
| Resolution | 0.01PH | 1mv | |
| Precision | 2% Calibration accuracy | ||
| Operating Temperature | Transmitter 0-65℃ | ||
| Material | PVC | ||
| Protection Level | I65/IP67(customized version) | ||
| Signal Output | 485 communication/4-20mA analog output/support HART protocol/NB.GPRS.LORA Communication (function option) | ||
| Supply Voltage | AC220V or DC24V (choose one of the two) | ||
| Power Consumption | <1W | ||
| Display | LCD Chinese display/TFT color LCD (customized version) | ||
| Installation Method | Wall mount | ||
| Sensor | Temperature Compensation | Automatic temperature compensation | |
| Protection Level | ip68 | ||
| Temperature | 0-60℃ | ||
| Sensor Material | PVC | ||
| Cable Length | Dedicated PH cable, standard 5 meters (extendable) | ||
| Operating Temperature | 0-60℃ | ||
| Storage Temperature | -10-60℃ | ||
| Installation Method | Bracket drop-in installation | ||
| Ordering Information Selection Table | ||
| KPH500 | PH/ORP analyzer | |
| Power supply | DC24V | |
| AC220V | ||
| Cable length | 5m | |
| 10m | ||
| 15m | ||
| 20m | ||
| Temperature compensation | Sensor without temperature compensation | |
| Sensor with temperature compensation | ||
| Signal output | Only 4-20mA | |
| Only 485 | ||
| Also with 4-20mA , 485 signal output | ||
| Special custom signal | ||
| KPH500-P-DC24V-5m-Sensor without temperature compensation-Only 485 | PH host, with DC24V adapter, cable between host and sensor,The cable length is 5 meters, the sensor is equipped without temperature compensation, and is only 485 communication. | |
| KPH500-R-AC220V-10m-Sensor with temperature compensation-Only 485 | Optional ORP host, with 220V adapter, line between host and sensor | |
Q&A
What does ppm stand for in pools?
parts per million
By Steve Donohoe. As pool service guys, we use the term parts per million several times a day when checking the chemical parameters of a swimming pool. It's the unit of measure that we use for the amount of chlorine, alkalinity, salt, TDS, cyanuric acid, and so on.
Is pH 10 Water Safe?
There has been no evidence of harm found in drinking water with a pH of between 7 and 8.5. (Interesting to note: The pH of human blood is a little on the basic side, 7.365.) When the PH of water becomes greater than 8.5, water taste can become more bitter.2018年8月31日
Does lemon make water alkaline?
Fresh lemons: If you prefer not to use baking soda, a fresh lemon added to your drinking water will also, eventually, make your purified drinking water more alkaline. ... Once you drink the acidic lemon water, it will become alkaline as your body reacts with the lemons' anions during the digestive process.
What happens if pH is too high in pool?
If the pH gets higher than 7.8, the water is becoming too alkaline. When water is too alkaline, it reduces the effectiveness of the chlorine — the pool chemical that kills pathogens. Water with a pH that's too high also can cause skin rashes, cloudy water and scaling on pool equipment.2019年7月26日
Can I use vinegar to lower pH in pool?
Lowering pH with Vinegar Commercially distilled white vinegar, often 5 percent acetic acid, has a pH of 2.4 and can be used to lower the pH in salt water aquariums. This amount should lower the tank pH by about 0.3 points. ... Most pool experts recommend a pool pH between 7.2 and 7.8.2020年5月8日
