Place of Origin:
China (Mainland)
اسم العلامة التجارية:
Kacise
إصدار الشهادات:
certificate of explosion-proof, CE
Model Number:
KUA-40-12PB-F
| Item | Parameters |

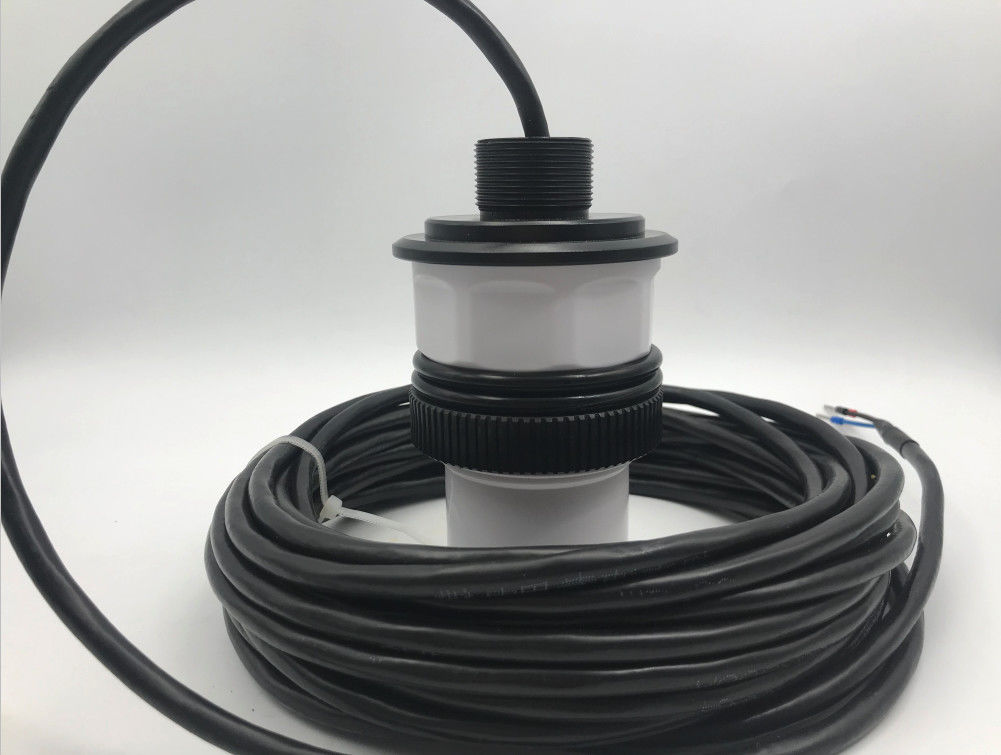

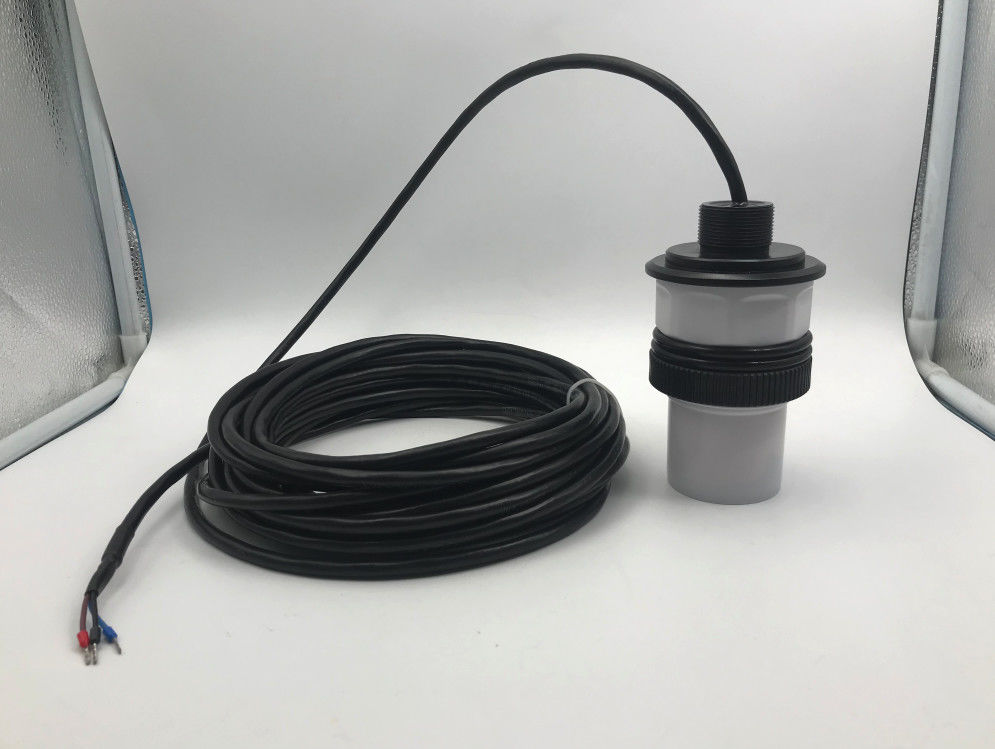

| Name | 12m Anti-corrosion Transducer Model PB |
| Model | KUA-40-12PB-F |
| Frequency | 40KHz±5% |
| Range | 0.5～12m |
| Minimum impedance |
390Ω±20％ |
| Capacitance | 5200pF±20％ @1KHz |
| Sensitivity | emits voltage:700Vpp,distance 0.6m, echo amplitude 450mV |
| Working voltage | Peak point voltage＜1500VPP |
| Working temperature |
-40～+80℃ |
| Pressure | ≤3kg or 0.3MPa |
| Angle | (Beam width) half-power angle@-3dB:10°±2, Sharpness angle: 23°±4 |
| Housing material | POM, PVDF |
| Usage | ultrasonic level sensor, monitor, anti-collision, security |
| IP grade | IP68 |
| Weight | 950g±5％(cable length: 10m) |
Company Information
Xi'an Kacise is qualified with ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof certificates, etc. which ensure that our products comply with international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years.
