Place of Origin:
China (Mainland)
اسم العلامة التجارية:
Honeywell
إصدار الشهادات:
certificate of explosion-proof, CE
Model Number:

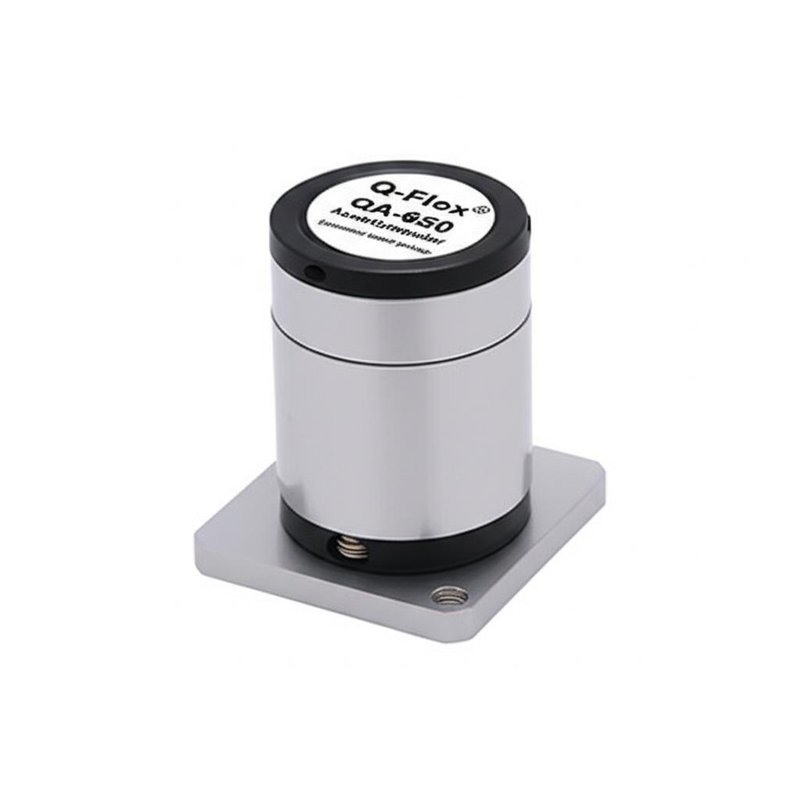

QA-650
| Attribute | Value |
|---|---|

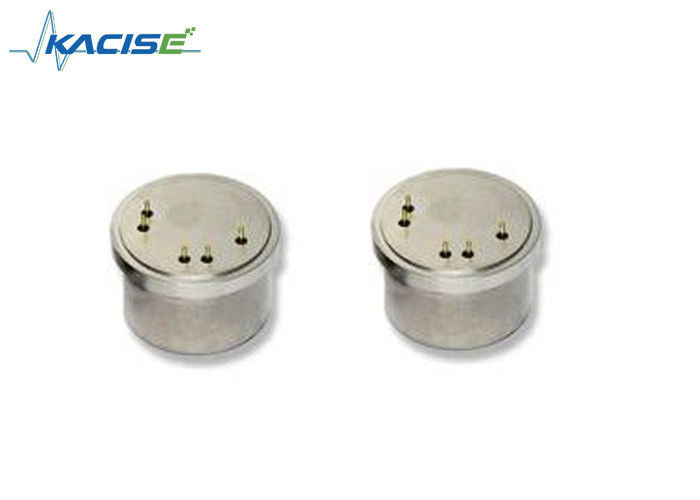

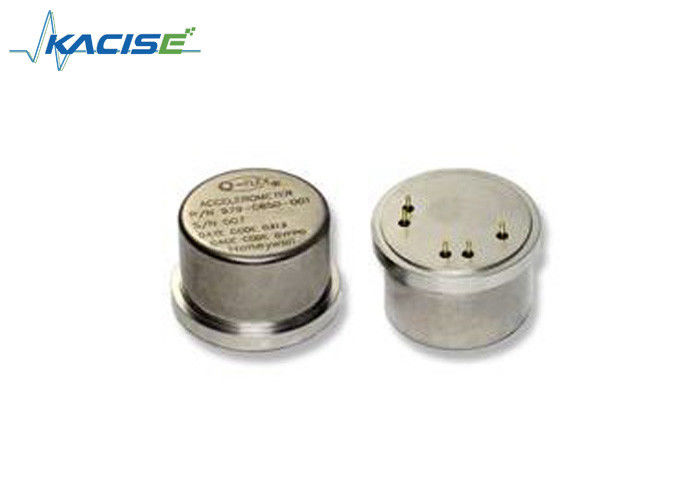

| Name | Accelerometer Sensor |
| Bias | Bias [ug] |
| Input Range | ±70g |
| Input Voltage | ±13 to ±18VDC |
| Case Material | 316 Series Stainless Steel |
| Type | Sensor |
| Interface | Analog Voltage output |
| Mounting | Through hole |
| Noise Density | 0.5 mg/√Hz |
| Operating Temperature | -40°C to +85°C |
| Output Data Rate | 1.56 Hz to 3200 Hz |
| Power Consumption | 1.8 mA |
| Range | ±2g, ±4g, ±8g, ±16g, ±70g |
| Resolution | 16 bit |
| Sensitivity | ±2g, ±4g, ±8g, ±16g, ±70g |
| Shock Survivability | 10,000g |
| Size | 2.0mm x 2.0mm x 0.75mm |
| Supply Voltage | 1.8V to 3.6V |
| Zero-g Offset | ±20 mg |
| Input Range [g] | ±70 |
| Bias [mg] | <15 |
| One-year Composite Repeatability [µg] | <2500 |
| Temperature Sensitivity [µg/ºC] | <100 |
| Scale Factor [mA/g] | 1.20 to 1.40 |
| One-year Composite Repeatability [ppm] | <2500 |
| Temperature Sensitivity [ppm/ºC] | <200 |
| Axis Misalignment [µrad] | <15000 |
| Vibration Rectification [µg/g2rms] | <100 (50-500 Hz) |
| Intrinsic Noise [µg-rms] | <3000 (0-10,000 Hz) |
| Operating Temperature Range [ºC] | -55 to +96 |
| Shock [g] | 100 |
| Vibration Peak Sine [g] | 25 @ 30-500 Hz |
| Resolution/Threshold [µg] | <10 |
| Bandwidth [Hz] | >300 |
| Thermal Modeling | YES |
| Quiescent Current per Supply [mA] | <16 |
| Quiescent Power [mW] @ ±15 VDC | <480 |
| Input Voltage | ±13 to±18 |
| Weight [grams] | 51 Nominal, 65 Max. |
| Diameter below mounting surface [inches] | Ø1.045 ±0.005 |
| Height - bottom to mounting surface [inches] | 0.617 Max. |
| Case Material | 300 Series Stainless Steel |
