مكان المنشأ:
الصين
اسم العلامة التجارية:
KACISE
إصدار الشهادات:
CE
Model Number:
KUS550
فيديو
فيديو

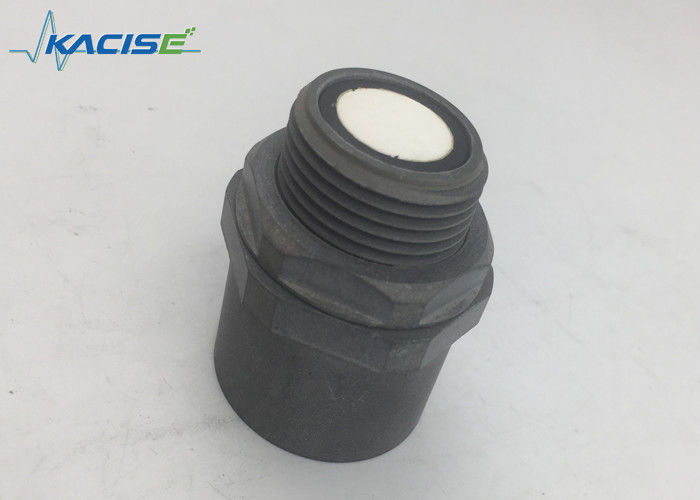

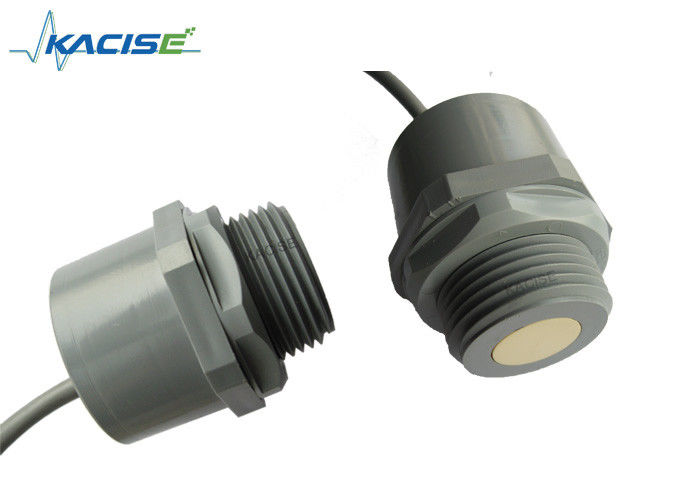

This sensor provides very short to long-range detection and ranging, in a compact, robust PVC / PTFE housing, designed to meet IP67 water intrusion. The power 13V-30V operation detects objects from 0.2 meters to 2 meters. The interface output formats RS485 serial digital output.
Features
. Designed for outdoor or indoor environments
. High sensitivity
. Readings can occur up to every 50mS (20Hz) within 2meters
. Free run operation can continually measure and output ranger information
. 13-30 supply with very low average current draw
. 0-10V with RS485 interface.
. Sensor operates at 125KHz.
. Sensor beam angle is 7 degrees.
.The analogue output can be set between 0-10V can work with the switch output.
Parameters
| General Parameters | Mechanical Properties | ||
| Detection Range | 200mm~2000mm | Connection | 5 pin cable |
| Transducer Frequency | 125KHZ | Weight | 100g |
| Repeatability Precision | ≤1% | IP grade | IP67 |
| Response Time | <50ms | ||
| Beam Angle | 7°±2 | ||
| Temp. Compensation | inside/outside/fix temp. | ||
| Electrical Parameters | |||
| Operating Voltage | 14.5VDC~27VDC | ||
| Limit Working Voltage | 13VDC~30VDC | ||
| Power Consumption | ≤30mA | ||
| Circuit Protection | short-circuit protection, overload protection | ||
| Output | Digital Output | RS485 | |
| Analogue Output | 0~10V | ||
| Switch Output | 0V / 10V | ||
| Ambient Environment | |||
| Operating Ambient Temp. | 0~70℃ (-40~85℃, -55~125℃, etc, customizable) | ||
| Storage Temperature | -55~1 | ||
