Place of Origin:
China (Mainland)
اسم العلامة التجارية:
Kacise
إصدار الشهادات:
certificate of explosion-proof, CE
Model Number:
KBU601

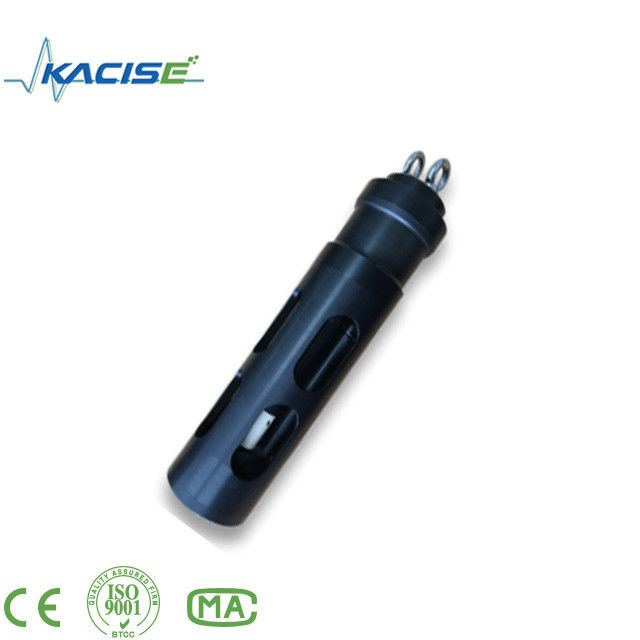

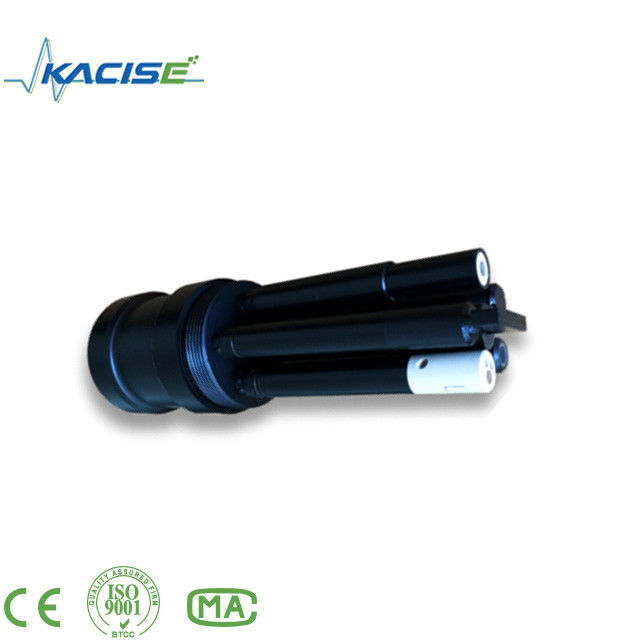

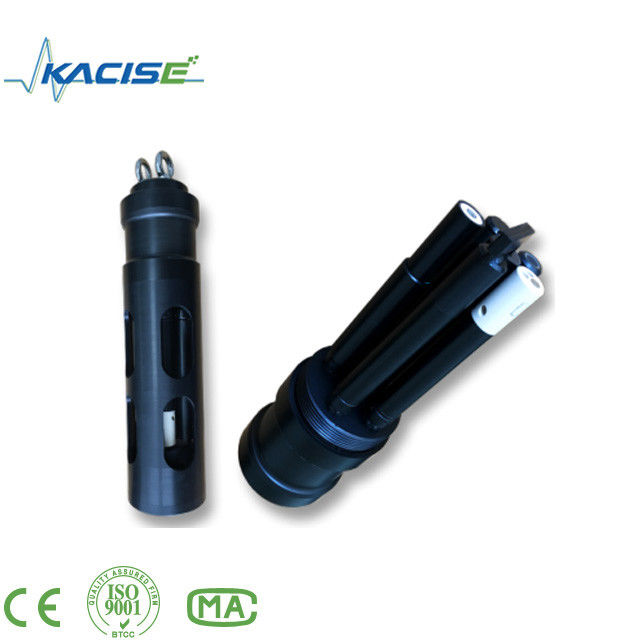

continuous water quality monitoring sensors sensoring system for aquaculture
1. Feature
Digital sensor, RS485 output, support MODBUS, all calibration parameters are stored in the sensor, each probe has a waterproof connector, which can be easily plugged and replaced. Equipped with automatic cleaning function, it can effectively remove sensor surface contamination, prevent microbial growth, and be more accurate and less maintenance. Optional fluorescence dissolved oxygen, four-electrode conductivity, fiber turbidity, digital pH, digital ORP, chlorophyll, water oil and ammonia nitrogen sensors for long-term online monitoring. The all-in-one design allows for the simultaneous connection of six probes and seven parameters.
2.Technical Specifications
| Fluorescent dissolved oxygen probe | range | 0-20mg/L |
| accurate | ±0.3mg/L | |
| Resolution | 0.01mg/L | |
| Fiber turbidity probe | range | 0-1000 NTU |
| accurate | 0.3NTU | |
| Resolution | 0.1NTU | |
| Four-electrode conductivity probe | range | 1Us/cm-200Ms/cm |
| accurate | 1% FS | |
| Resolution | 0.1mS/cm | |
| Chlorophyll sensor | range | 0~400 ug/L |
| accurate | 0.1 µg/L | |
| Resolution | 0.1 µg/L | |
| Digital pH probe | range | 0-14pH |
| accurate | ±0.1pH | |
| Resolution | 0.01 | |
| Digital ORP probe | range | -999~999mV |
| accurate | ±20mV | |
| Resolution | 1mV | |
| Oil-in-water sensor probe | range | 0-5000ppb |
| accurate | 5% | |
| Resolution | 0.1ppb | |
| Ammonia nitrogen sensor probe | range | 0-1000mg/L |
| accurate | ±10% | |
| Resolution | 0.1mg/L | |
|
Multi-parameter sensor other information |
power supply | 12V ±5% |
| Protection level | 0~50℃ | |
| Operating temperature | IP68 | |
| Output | RS485 | |
| cable length | Standard 10m, customizable 5m, 15m and 30m cable |
Multi-parameter water quality sensor (seven parameters)
Integrated design, each sensor has a waterproof connector, calibration data is stored in the sensor, can be calibrated and replaced in the field. You can connect up to 6 water quality digital sensors at the same time, with optional fluorine dissolved oxygen, four electrode conductivity, fiber turbidity, digital pH, digital ORP, chlorophyll, water oil and ammonia nitrogen sensors. Equipped with a cleaning device to eliminate air bubbles and prevent microbial growth. Various water environment monitoring needs, such as rivers, lakes, oceans and groundwater. Excellent reliability, no maintenance, and can run for months in an unattended environment.
