Place of Origin:
China (Mainland)
اسم العلامة التجارية:
Kacise
إصدار الشهادات:
certificate of explosion-proof, CE
Model Number:

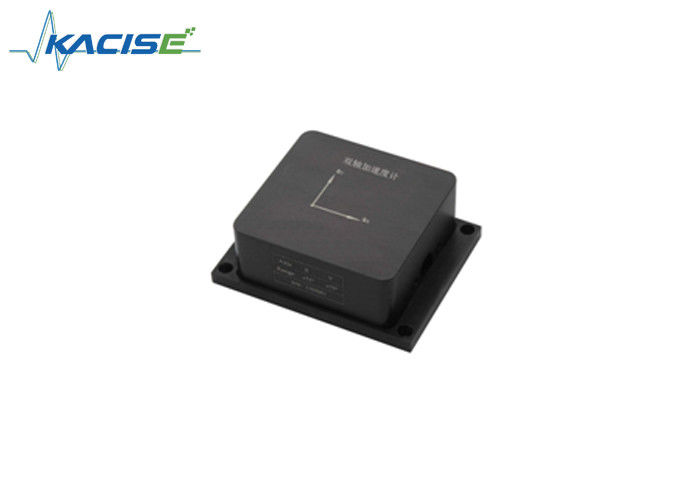

K-2JSJ-100

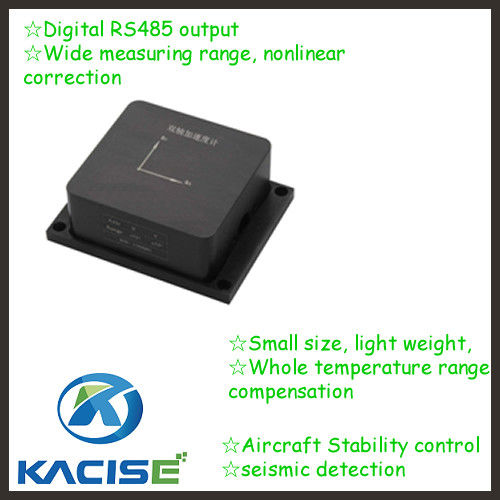

☆Digital RS485 output
☆Wide measuring range, nonlinear correction
☆Small size, light weight,
☆Whole temperature range compensation
☆impact resistance, vibration performance
☆Aircraft Stability control
☆seismic detection
| Type | K-2JSJ-100 | |
| Electric character | ||
| Input voltage | 6～8 VDC | |
| Input current | ≤60 mA | |
| Output Mode | RS 485 | |
| Baud Rate | 115200 bps | |
| Output Data Rate | 200 Hz | |
| Output Data format | 16-bit twos complement | |
| Performance index | ||
| Axial direction | X | Y |
| Range | ±10 g | |
| Bandwidth | ≥50 Hz | |
| Resolution (°/s) | 0.005 g | |
| Nonlinear (%F.S.) | ≤ 0.5% F.S. | |
| Bias | ≤ 0.05 g | |
| Start-up time | ≤1s | |
| Environmental characteristics | ||
| Temperature (°C) | -40℃~+70℃ | |
| Storage Temperature | -40℃~+125℃ | |
| Resistant to shock | 2000g | |
| Physical Characteristics | ||
| Weight (g) | 80g | |
| Dimensions | 48×38×18 mm | |
Bandwidth can choose ≤400 Hz
