Contact And Non Contact Liquid / Fuel / Water Flow Sensor For Ultrasonic Flow Meter
Introduction
KUF2000 series ultrasonic water flow meter usually is used in long-term measurement at field. It has three types of sensor to measure the pipe flow: clamp on type, insertion type and inline pipe type. And it can measure heat if add temperature sensor. SD card is optional to save large quantity of data.

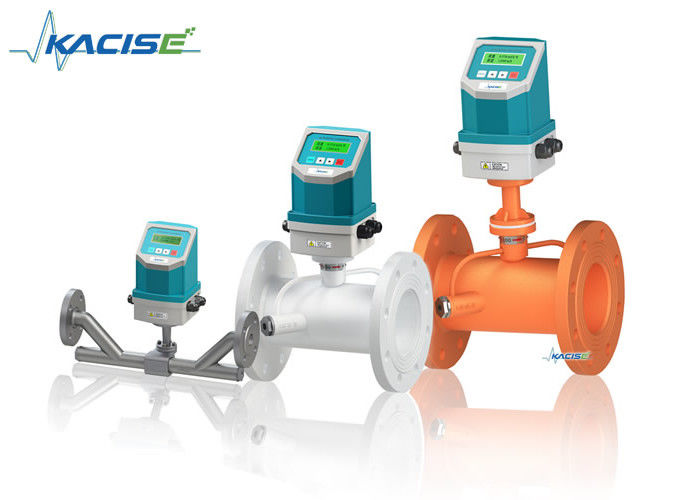

Inline pipe type: DN15-32mm pipes uses π shape inline pipe sensor, DN40 and above uses standard inline pipe sensor. The inline sensors has the advantages of low starting flow rate, high measurement accuracy and no pressure loss.
Clamp on type: The sensors clamp on to the outside of pipes and do not come in contact with the internal liquid. And all the models can become energy meters when connecting to temperature sensors. KUF2000 Series Clamp On Ultrasonic Flowmeter is easy for installation, no need to cut off the pipe and water, no press loss. It support measuring online long-term. Wide range of liquid flow can be measured with the sensor clamped on the pipe.
Insertion type: Only two installation holes are needed on the pipe, user can install the insertion type sensors. By using the hole making tool, the no stop flow installation can be realized. Sensors contact to the fluid directly, the measurement is stable and reliable.
Parameters
|
Host part |
Principle |
Ultrasonic time gap |
|
Accuracy |
±1% |
|
|
Display |
2×20 character LCD with backlight |
|
|
Signal output |
1 way 4~ 20mA output, electric resistance 0~ 1K,accuracy0. 1% |
|
|
1 way OCT pulse output( Pulse width 6 ~ 1 0 0 0 ms,default is 2 0 0 ms) |
||
|
1 way Relay output |
||
|
Signal input |
3 way 4~ 20mA input, accuracy 0. 1%,acquisition signal such as temperature, press and liquid level |
|
|
Connect the temperature transducer Pt100, can finish the heat/energy measurement |
||
|
Data interface |
Insulate RS485 serial interface, upgrade the flow meter software by computer, support the MODBUS, METER-BUS etc. |
|
|
Cable |
Twisted-pair cable, generally, the length under 50 meters; Select the RS485 communication. The transmission distance can over 1000m. |
|
|
Pipe Condition |
Pipe material |
Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed. |
|
Pipe Diameter |
DN15~6000mm |
|
|
Straight length pipe |
Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump. |
|
|
Medium |
Type of Liquid |
Water, sea water, waste water, oil, chemicals (alcohol, acids, etc.), plant effluent and other liquids |
|
Temperature |
-30~160°C |
|
|
Turbidity |
10000pm not so much bubbles |
|
|
Flow speed |
0~±10m/s |
|
|
Environment |
Temperature |
Host: -20~60°C; Sensor: -30~160°C |
|
Humidity |
Host: 85%RH; Flow sensor: IP68, less than 2m under water |
|
|
Power supply |
DC8~36V or AC85~265V or Battery |
|
|
Consumption |
1.5W |
|

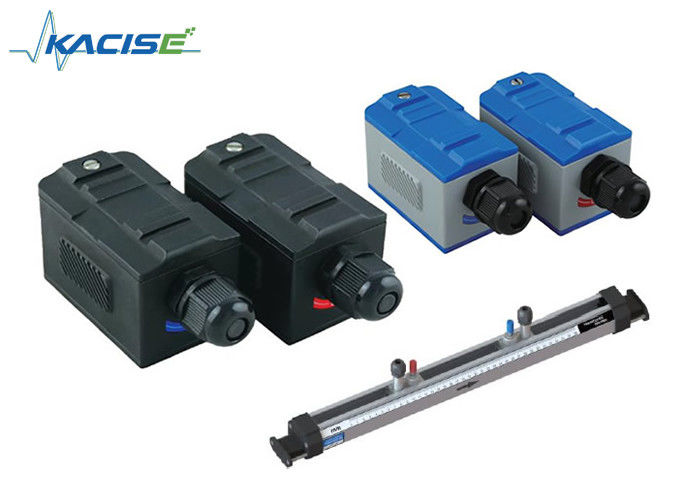

Sensor Selection
Optional Temp. sensor

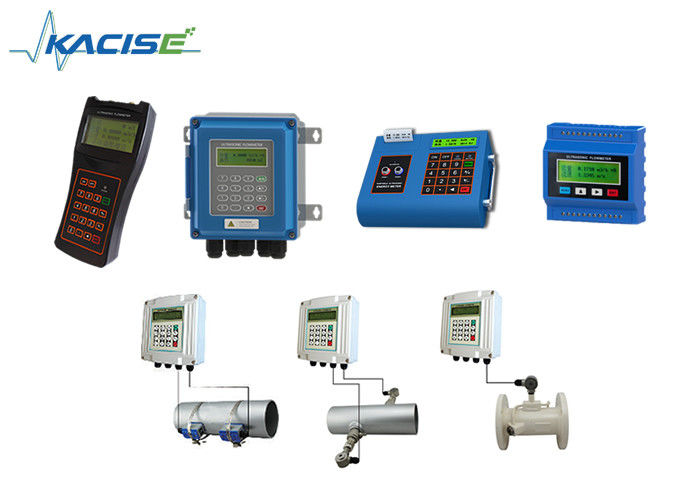

Optional Host
Ordering Infomation
