Place of Origin:
Shaanxi, China (Mainland)
اسم العلامة التجارية:
kacise
إصدار الشهادات:
CE
Model Number:
GXPS606
Application
Feature
Introduction

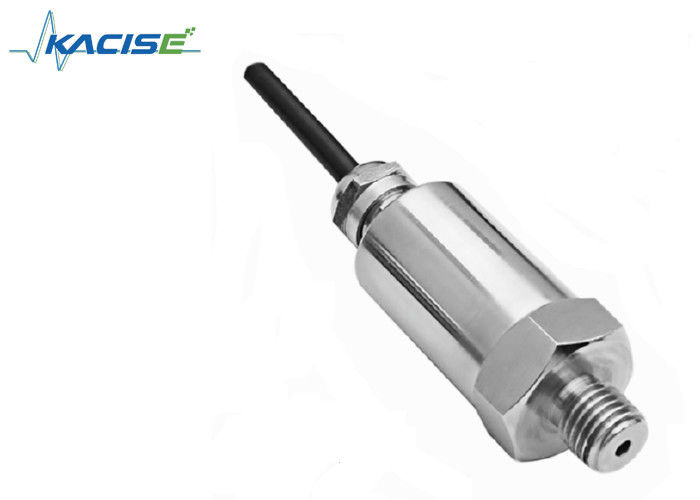

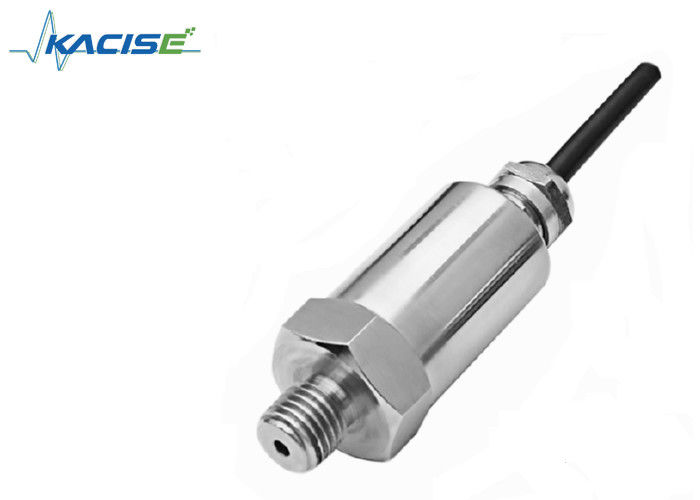

GXPS606 series pressure transmitter, which is using the international first-class sensor cores, the transmitter ASIC and accessories, with military production lines and processes, make the production of high-precision, high-quality, small size, easy to install, simple to use, pressure class of cost-effective transmitter.
GXPS606 digital pressure transmitter adopts high-performance MCU, precision ADC and DAC, after temperature compensation, the temperature region of -40 ° C to 85 ° C or -10 ° C to 60 ° C at ambient temperature can achieve 0.1%, 0.25% accuracy, and be corrected through software, it can achieve higher accuracy. RS485 digital and analog dual output, the RS485 flexible network and host computer testing software, the analog part can be freely configured to any interval within 0V ~~ 5VDC range.
Electronic interface and signals definition
|
||||||||||||||||||
Parameter
| Spec. | Value |
| Pressure range | 0~2MPa……100MPa |
| Accuracy | 0.25%F.S, 0.1%F.S |
| Over load pressure safe | 1.5times nominal pressure (1.5X) |
| Secondary containment | 3times nominal pressure (3X) |
| Power supply | 10~30Vdc |
| Operating current | <10mA |
| Compensated temperature range | -10°c~60°c, -40°c~85°c |
| Analog output | 0-5VDC |
| Digital output | RS485 |
| Operating temperature | -40~80°c |
| Electrical connection | Air plugs |
| pressure port | M20×1.5, G1/4, G1/2, R1/2, NPT1/2 |
| Protection class | IP65 |
| Stability | 0.15%F.S |
| Pressure type | Gage Sealed gage |
| EMI/EMC | EMI: EN50081-1/-2; EMC: EN50082-2 |
Ordering Information
GX-Type-Range-Output-Power-Pressure port-Electric connection-Cable length-Package
