Place of Origin:
China (Mainland)
اسم العلامة التجارية:
KACISE
Model Number:
KUHM2100

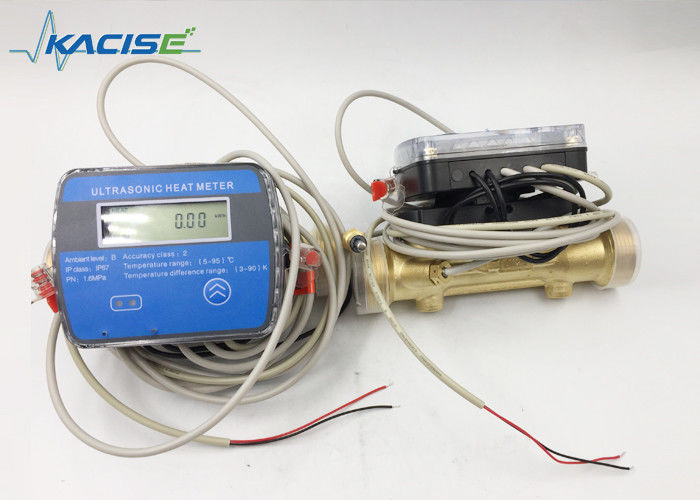

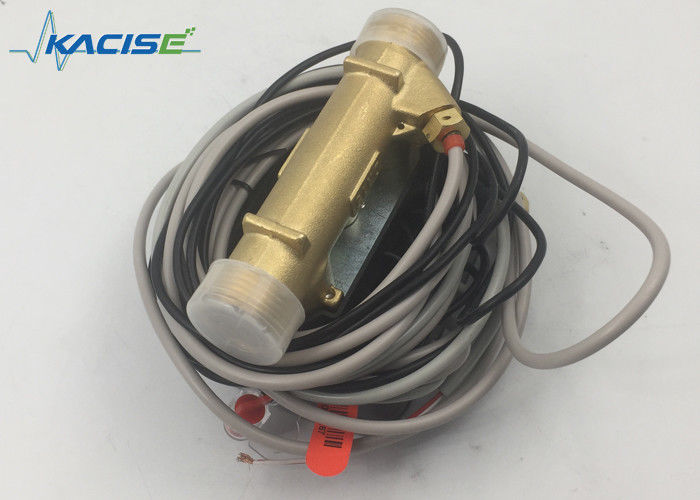

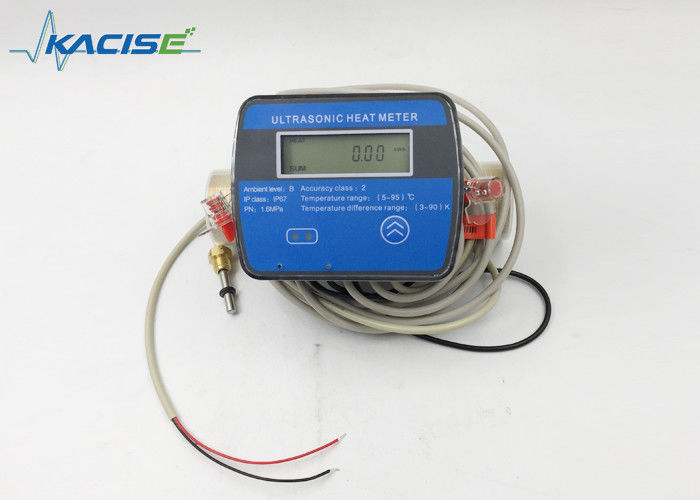

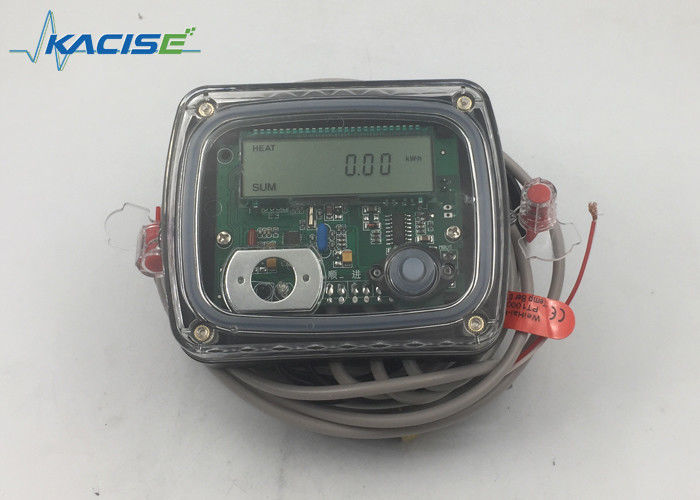

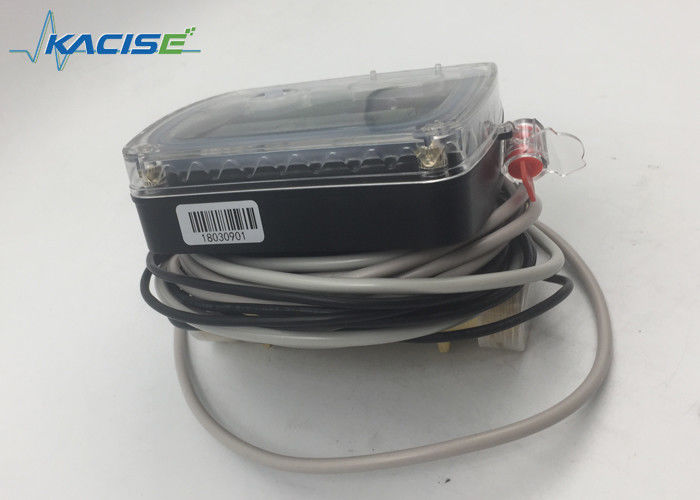

KACISE KUHM2100 series heat meters adopt most advanced non-magnetic technology and it features elegant appearance, accurate measurement, convenient management, steady operation, strong anti-erosion, and long using life, which is secure and economic.
It is widely used in the heat system with concentrated heat supplying management, separate household data collecting management. Varies of communication modes are optional according to the users’ need.
Feature
1. Measure Heat.
2. Show supply/return water temperature and differential temperature.
3. Display pile flow measure and instantaneous flow measure.
4. Running time display.
5. Cold measure and display (for heat/cold Ultrasonic Heat Meter.
Technical Specification
Diameter | Min Flow | Quantity of Flow | Max Flow | Length |
qmin(m³/h) | qp(m³/h) | qmax(m³/h) | mm | |
DN15 | 0.03 | 1.5 | 3 | 110 |
DN20 | 0.05 | 2.5 | 5 | 130 |
DN25 | 0.07 | 3.5 | 7 | 160 |
DN32 | 0.12 | 6 | 12 | 180 |
DN40 | 0.2 | 10 | 20 | 200 |
Measurement Accuracy | CJ128-2007<Heat Meter>Class 2 | |||
Connection | DN15~DN40 Threaded connection/DN50~DN300 Flange connection | |||
Pressure Loss | ≤0.02MPa | |||
Maximum Working Pressure(MWP) | 1.6MPa | |||
Flow Measuring Range | 1:100 | |||
Temperature Sensor | 1.5m standard a pair of PT1000 Temperature Sensor (cable length could be changed) | |||
Data Storage | Continuous store of 18 months record | |||
Power-off Protection | After power-off, meter could save all the record of before flow rate and the corresponding time, after power back, it recovery measure function automatically, and ensure the time continuation | |||
Remote Transmission | MBUS/RS-485 | |||
Power Supply | High Power Lithium battery | |||
Protection Class | IP67 (IP68 need to modified) | |||
Environmental Class | Class B | |||
Temperature Range | (5~95)℃ | |||
Temperature Difference | (3~90)K | |||
Installation Way | Inflow or Return flow(Default is Inflow, for return flow need to indicate when ordering) | |||
Installation Position | Horizontal / Vertical | |||
Permanence | Service cycle≥6 years | |||

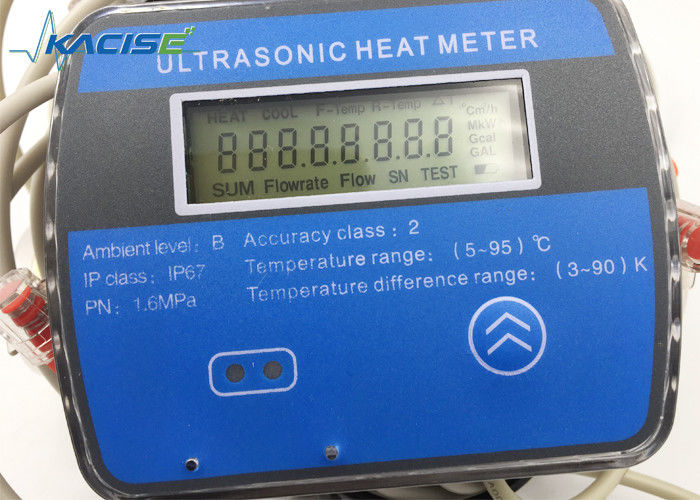

Display | 8-bit LCD display | |||
Anti-magnetic Disturbance | When the intensity of magnetic field interference is not more than 100 ka/m, should not affect water meter measurement and remote transmission characteristics | |||
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
We supply high quality ultrasonic btu meters, hope we can coopperate in near future by providing you suitable products, good services and reasonable prices.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal and Trade Assurance.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: What is Trade Assurance payment method:
A: It’s a free service which can protect your orders from payment to delivery.
And we now have USD104,000.00 of caution money to assure your orders.
7. Q: Do you have a warranty for ultrasonic btu meters?
A: Yes, we have the warranty of 12 months.
